Full Scale Processing, Freezing and Palletizing

In this compact factory design, two separate processing and freezing lines are combined with a shared palletizing section.

Key features include:

Two different freezing solutions depending on product
High-capacity freezing
Coherent design with robot and automatic palletizing

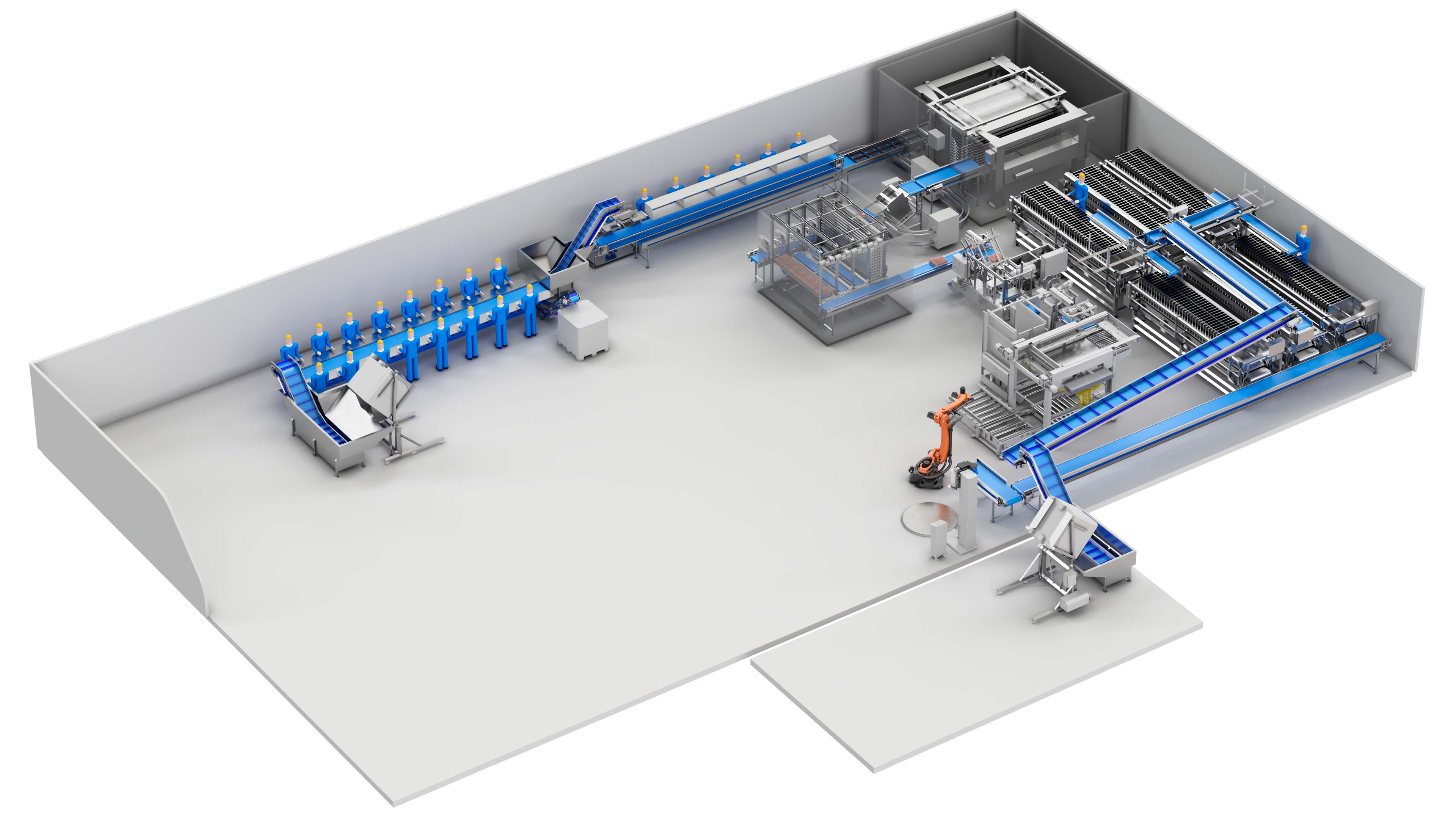

Carsoe Full Scale Processing, Freezing and Palletizing 1

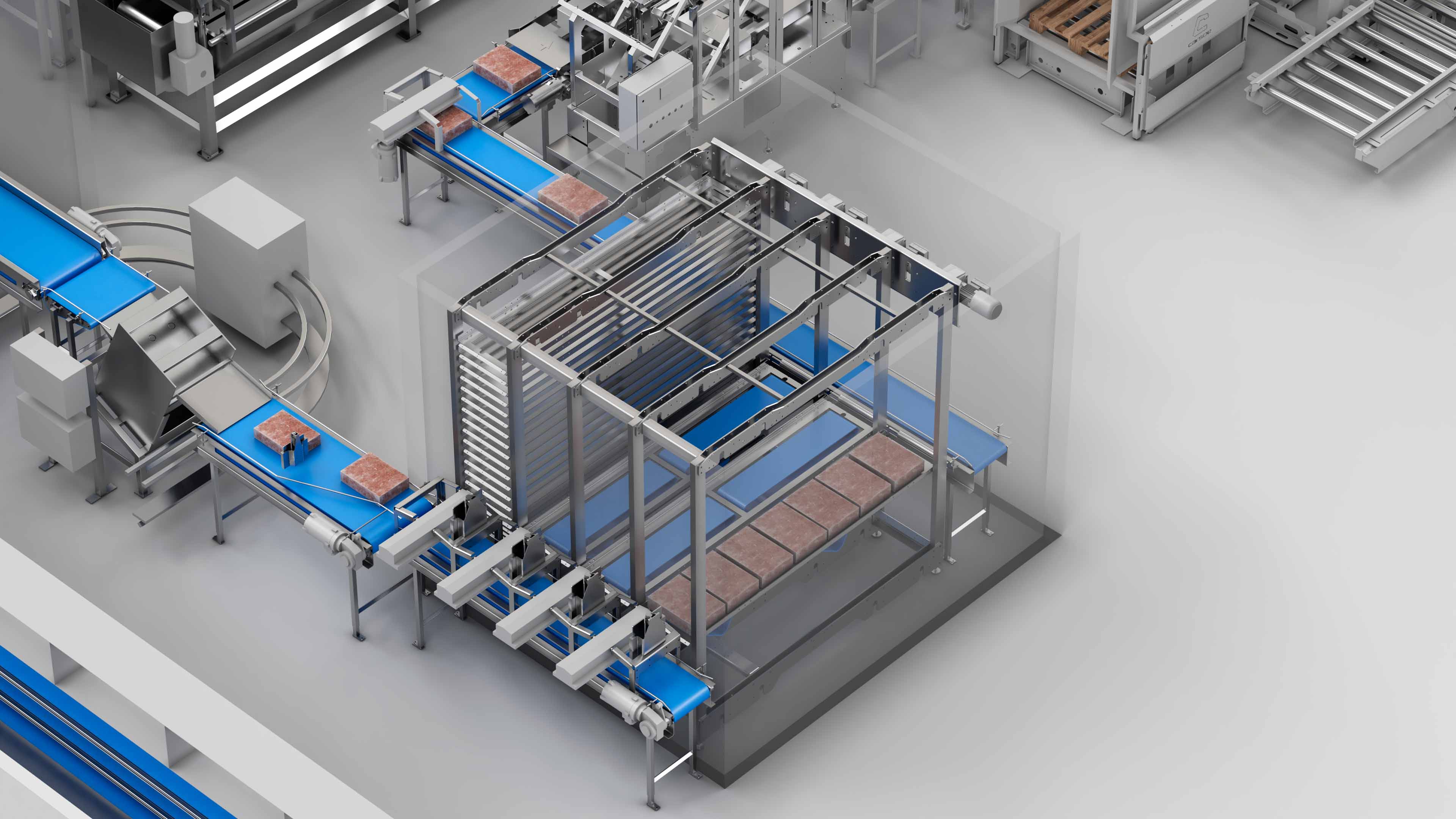

Carsoe Full Scale Processing, Freezing and Palletizing 2

Products are stored and sorted in hotel. Once a full pallet of products is stored, the product continue to the palletizing section.

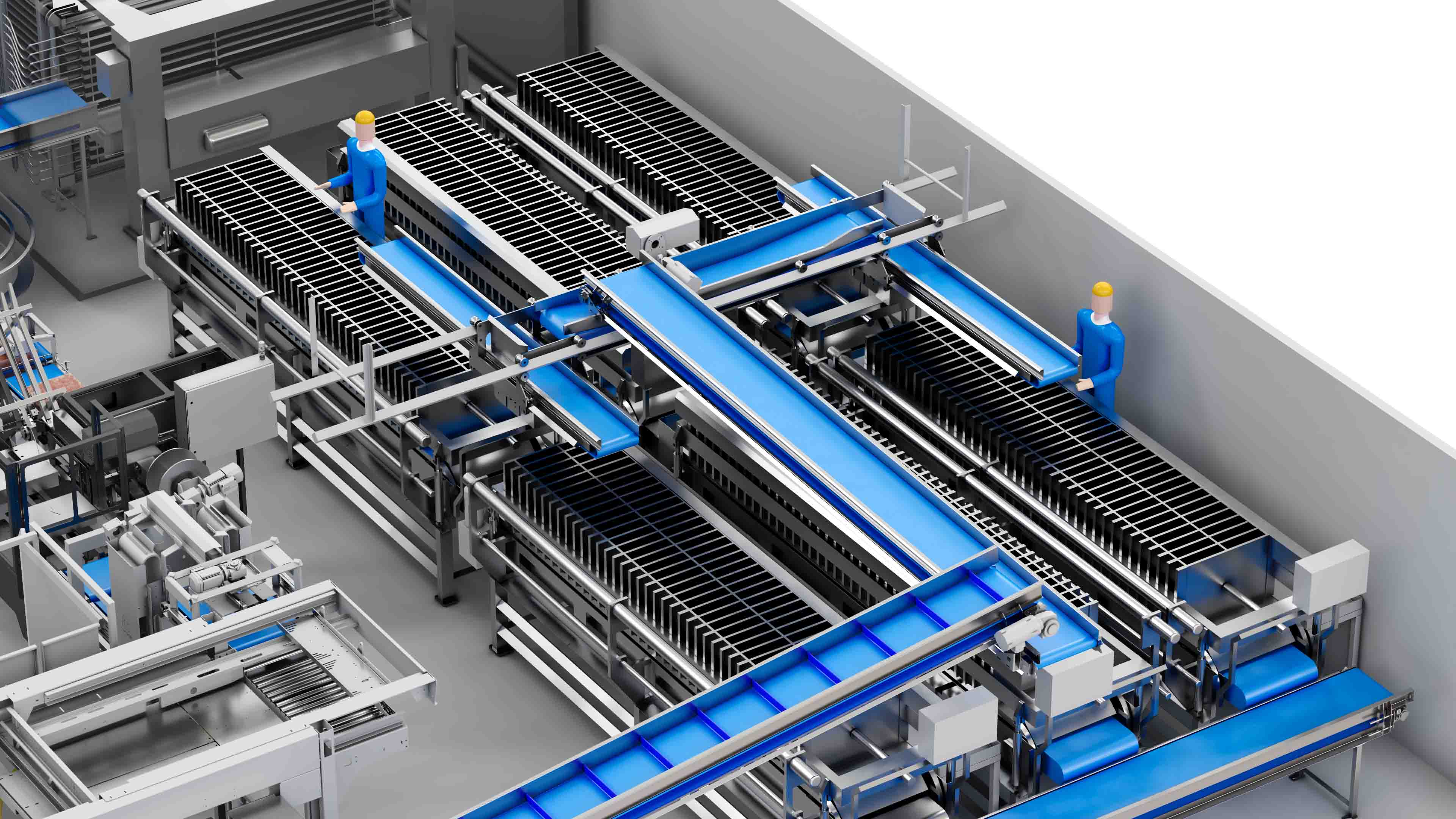

Carsoe Full Scale Processing, Freezing and Palletizing 4

V16 Vertical Plate Freezer section ensures high freezing capacity for block freezing of products.

Carsoe Full Scale Processing, Freezing and Palletizing 3

Efficient palletizing with integrated stretch wrapping making the products ready for safe transportation.

Two separate lines

The first line is a processing line with scraping tables as well as a batching and packing line.

The products are packed in freezing pans before continuing to the Automatic Horizontal Plate Freezer. The frozen blocks are then stored in the Cold Storage Hotel in up to four different sortings.

Each sorting is palletized separately in the Palletizing Machine with Integrated Stretch Wrapper making the completed pallets ready for further transportation.

The second line is an efficient and high-capacity freezing line for mince, offal products etc.

The four V16 Vertical Plate Freezers ensure reliable and uniform freezing and with the automatic discharge solution, the need for manual handling of the frozen blocks is eliminated.

In the palletizing section, the robot can either send the frozen blocks to the Automatic Palletizing Machine or palletize directly onto a pallet at the separate stretch wrapping station to allow for multiple packing options.

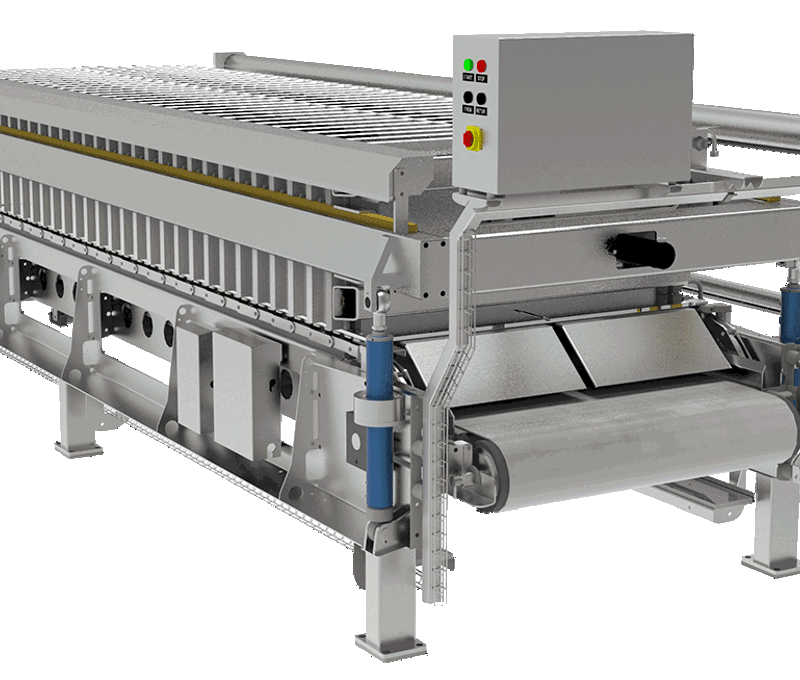

V16 Freezer

Automatic and gentle handling of frozen blocks. V16 Freezer in combination with unique and patented Automatic Unloading System for easy handling of frozen blocks. The freezer system ensures automatic and simple unloading and is available for both sea and land installations.

The V16 Freezer is available in many different block sizes and stations according to individual needs.

The V16 Freezer system is fully automatic which ensures no manual heavy lifting or risk of dropping the frozen blocks. Also, the system is highly suitable for automatic bag infeed and palletizing.

Learn more about our V16 Freezer here

Carsoe Onboard North Star Automatic Horizontal Plate Freezer

How does an automatic plate freezer work?

An automatic plate freezer operates with a meticulously designed mechanism that features aluminium seawater-resistant plates and a stainless steel construction. These plates, maintained at a uniformly low temperature, ensure quick and even freezing when food products are placed between them.

Direct dual contact with the cold surfaces ensures a swift transition to a frozen state, preventing large ice crystal formation, and guarding against discoloration, enzymatic browning and cellular breakdown in seafood products.

Compared to traditional air blast freezing, which relies on cold air circulation to freeze products, plate freezing technology is notably more efficient, cutting down freezing time and conserving energy. This translates to significant cost-efficiency for businesses, primarily due to its reduced energy consumption. The automatic plate freezer enhances operational efficiency by reducing the need for hands-on intervention and ensuring consistent freezing parameters.

Learn more about our Automatic Horizontal Plate Freezer here

Automatic Palletizing Machine

One of the standout features of the Palletizer CS4000 is its ability to provide safe and secure storage for palletized goods, even in the harshest conditions. The stretch film is applied layer by layer as the machine palletizes, ensuring that each product is firmly secured to the pallet.

This not only protects your palletizing products during transport but also ensures stability when storing goods in the cargo hold.

We also offer a Palletizing Machine With Integrated Elevator, which allows for easy transport of pallets to the cargo hold, further enhancing the efficiency of the palletizing process. By minimizing the amount of space needed for pallet handling, the Palletizer CS4000 helps trawlers optimize their workspace, making it an indispensable tool for any seafood processing operation.

Learn more about Palletizing and Handling

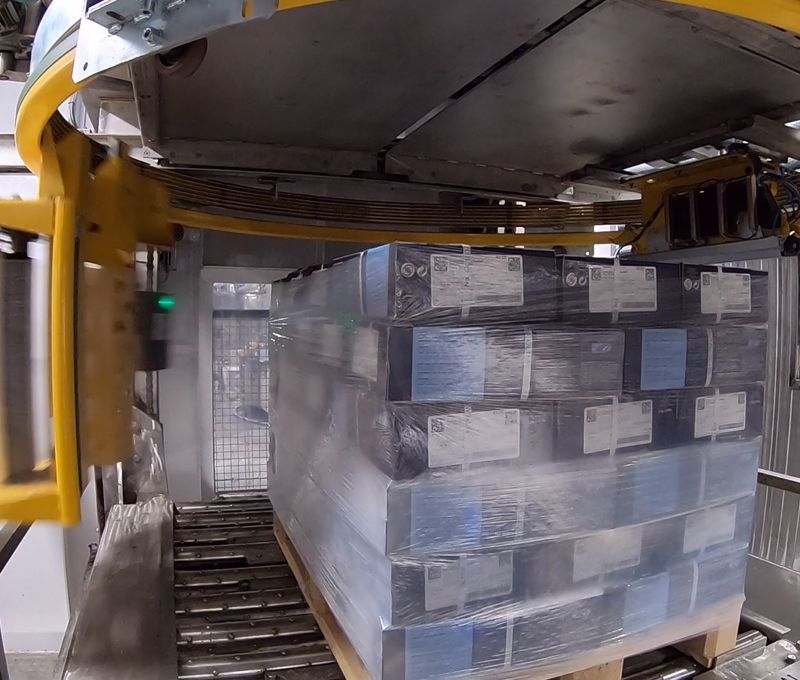

Carsoe CS4000 Palletizing Machine (CS4000 Palletizer)

Production

Imagine a haul where every critical step of the processing process is logged. Cooking temperature, room temperature, freezing temperature and time, humidity – you name it. Your factory is packed with data just waiting to be utilized.

Get the most out of your factory with our software solutions for data tracking. Production Insights is a collection of software solutions for your factory. The different solutions can be combined to create the best solution for your process data management.

Learn more about Production Insights
