For emptying 300 L bins

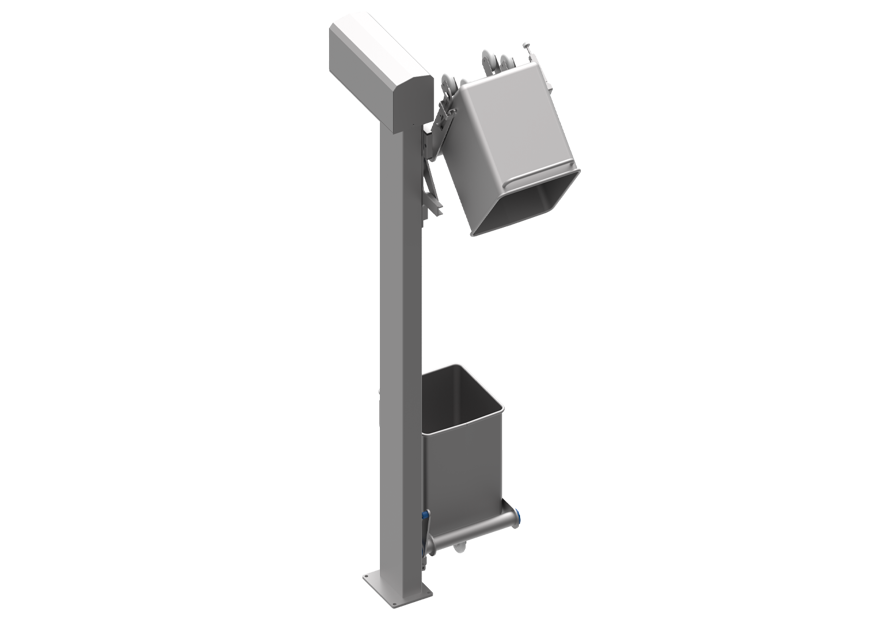

The single column lift HKV 300 is designed for emptying 200/300 l bins or vats.

The HKV 300 is equipped with a fork for standard Euro bins. However, we also offer customized solutions.

The lift can be easily customized in order to adjust it to specific requirements in production.

Hygiene and safety



Hygienic design

The hygienic design of Carsoe’s single column lift is characterized by its closed column construction which protects the chain against dirt. The front cover can easily be removed which makes regular maintenance easy and convenient, and at the same time secures a longer lifetime of the machine.

Safety measures

The user’s safety is our biggest priority. Therefore, all our lifts are equipped with an anti-fall security system, guaranteeing that the fork gets locked in the column in case the chain is breaking. Additional precautions have been added by limiting the lifting speed to maximum 5 meters/min. In order to return the bin to the floor the user is required to activate the corresponding function button.


Column lift specifications

The HKV 300 is designed for 200/300 l Euro bins with a maximum capacity of up to 350 kg.

The lift design allows the lifter to be placed close to walls. The tipping height can be individually adjusted by 4 steps of 120 mm, and it can be designed with either straight or sideways tipping.


Further specifications:

  • 1" nickel-plated chain
  • Spring activated bin lock
  • Sturdy construction
  • Mechanical anti-fall security system
  • Stainless steel construction


Column lift customized

Your lifting solution can be customized according to your production needs. We custom-built each lift.

  • Chute mounted on forks
  • Pneumatic chute
  • Shaft extension
  • Separate tilting chute

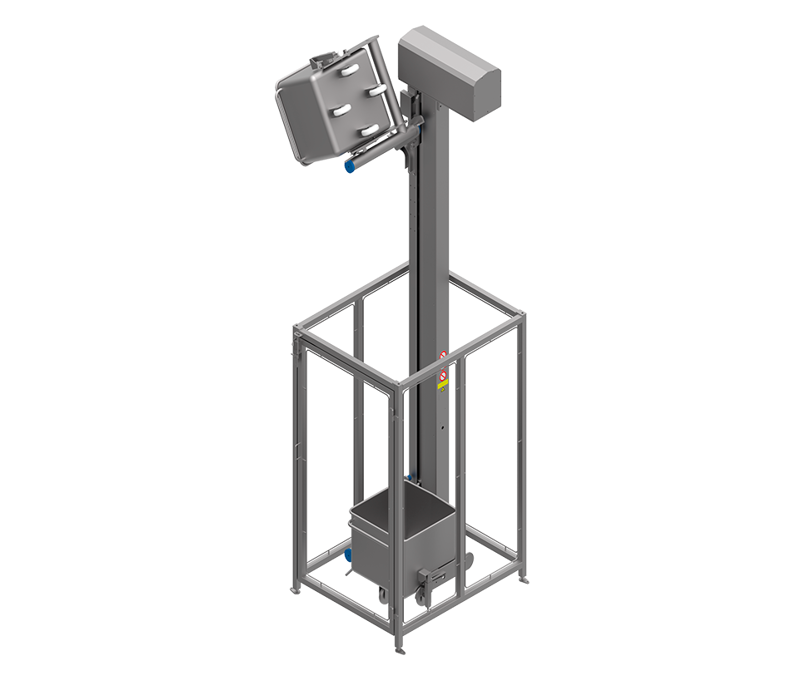

  • Mobile frame up to 2700 mm discharge height
  • Mobile frame with fixed chutes for tumbler loading
  • Various anticorrosion chain types
  • Safety shielding
  • Fork devices for barrels etc.
