Automated Packing and Freezing Line

Packing and Automated Freezing Line

In this packing and freezing line, the whole fish are neatly packed into 12,5 kg freezing pans before continuing to the high-capacity Automatic Horizontal Plate Freezer.

The double contact plate freezing method ensures swift freezing of the product to preserve
freshness.

By automating the freezing process, the manual handling is significantly reduced as the freezer infeed and outfeed are handled automatically.

Following the freezing process, the frozen products are packed into master boxes, strapped, check-weighed and ready for further handling.

Key features include:

Automatic plate freezing
Efficient packing solutions
Continuous production

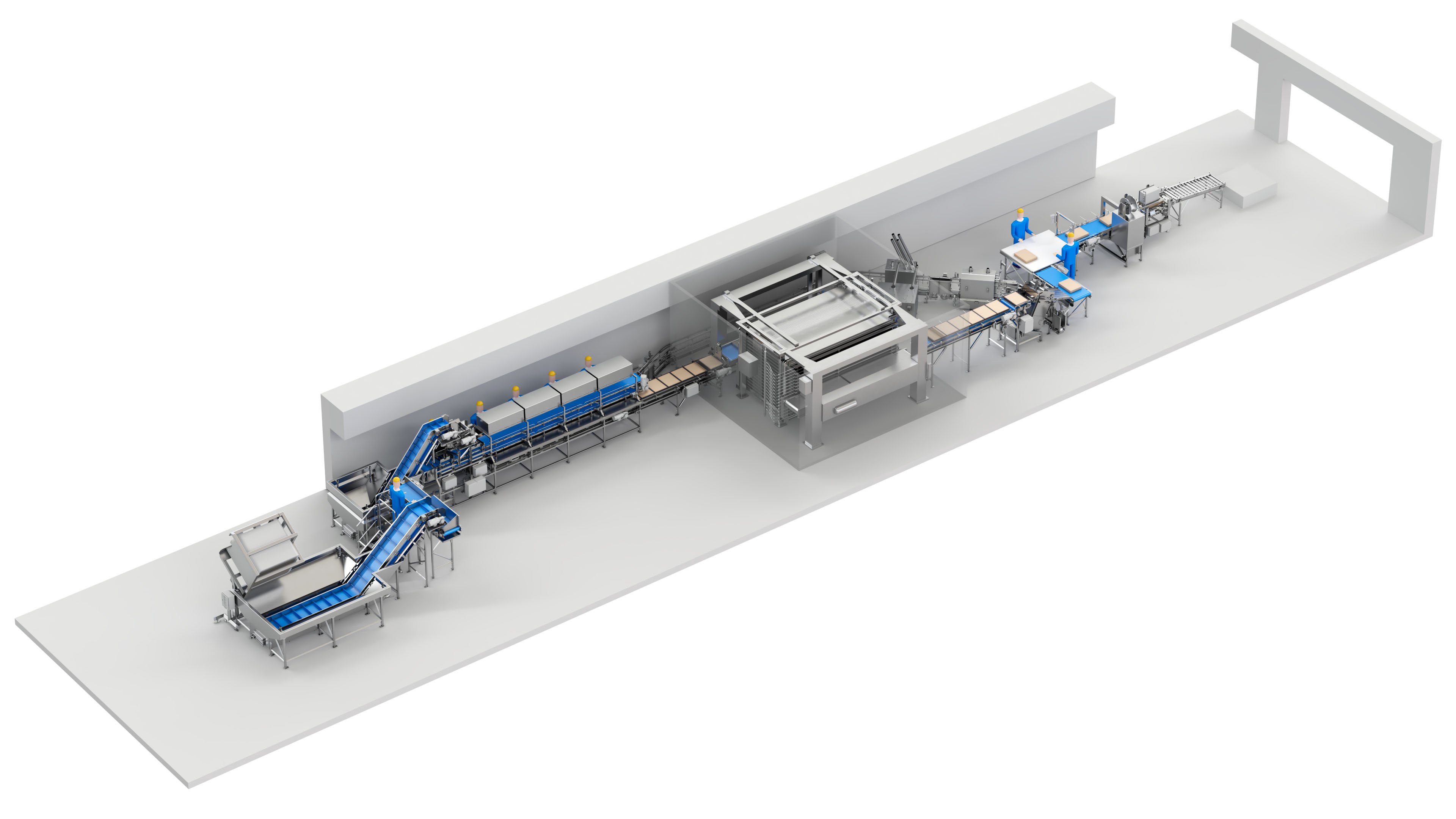

Carsoe Automated Packing and Freezing Line 1

Carsoe Automated Packing and Freezing Line 3

Packing station for freezing frames. The whole fish are packed into freezing pans before freezing.

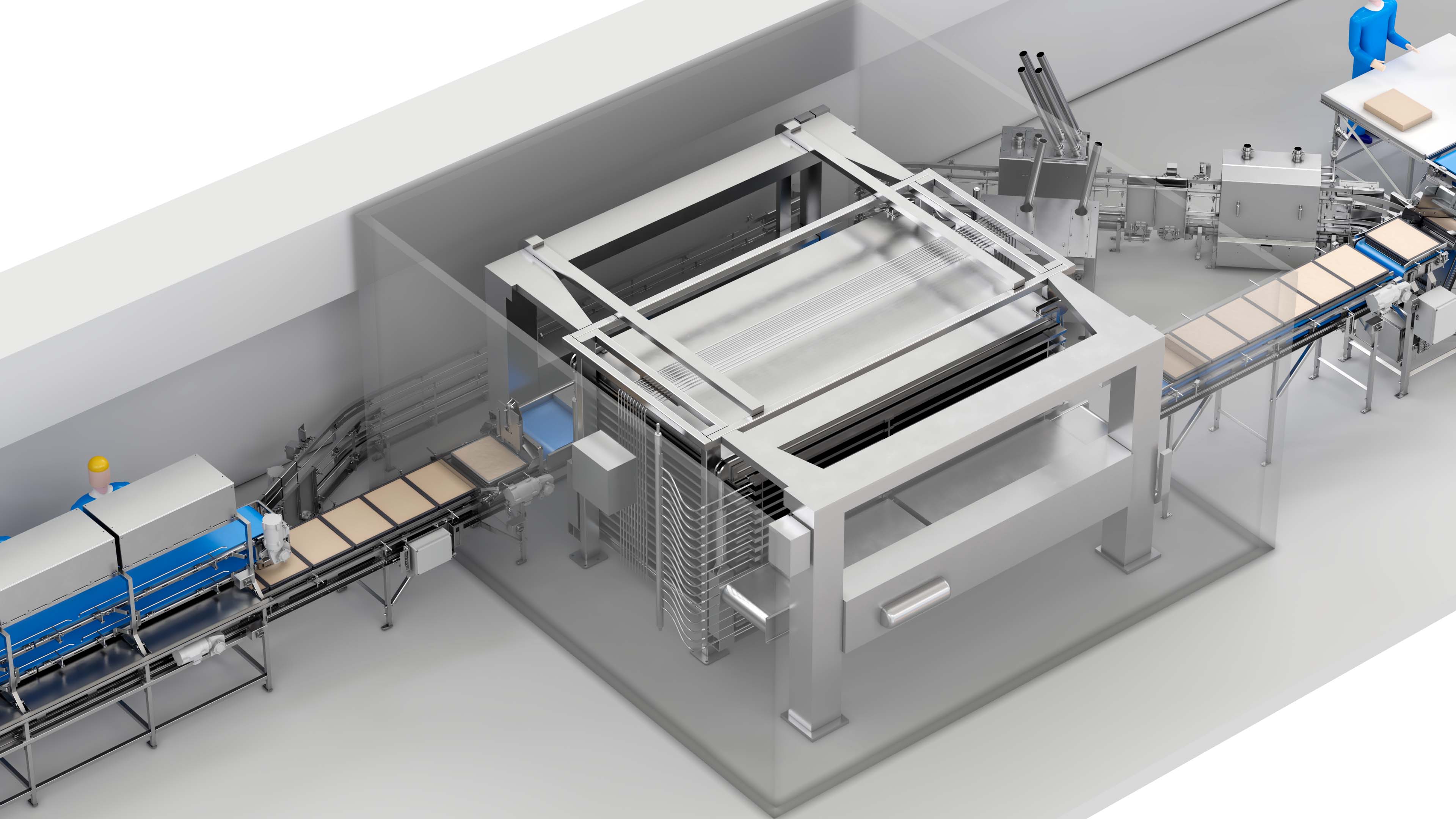

Carsoe Automated Packing and Freezing Line 4

Automatic Horizontal Plate Freezer with automatic infeed and outfeed.

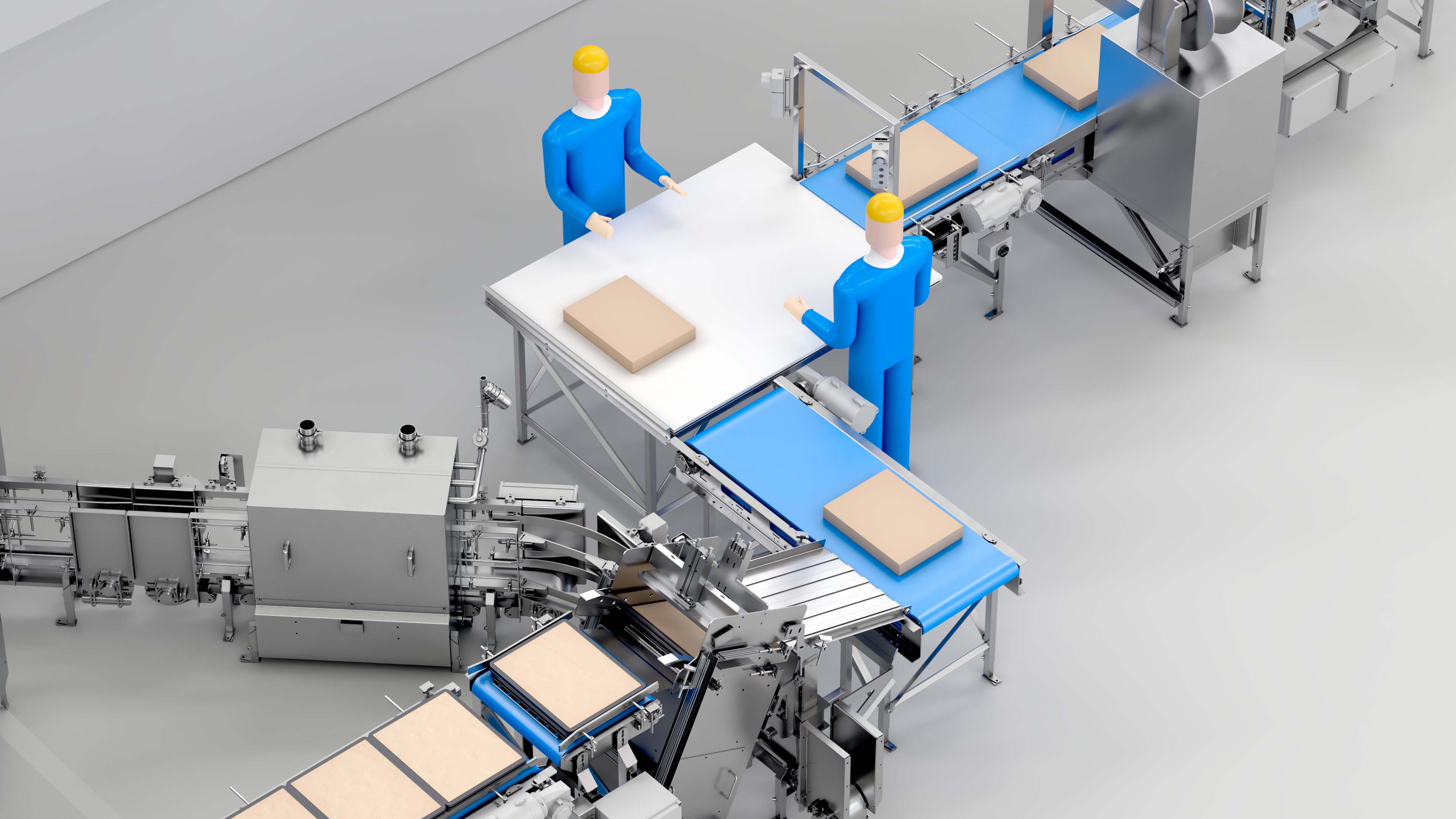

Carsoe Automated Packing and Freezing Line 5

Masterpacking of the frozen blocks.

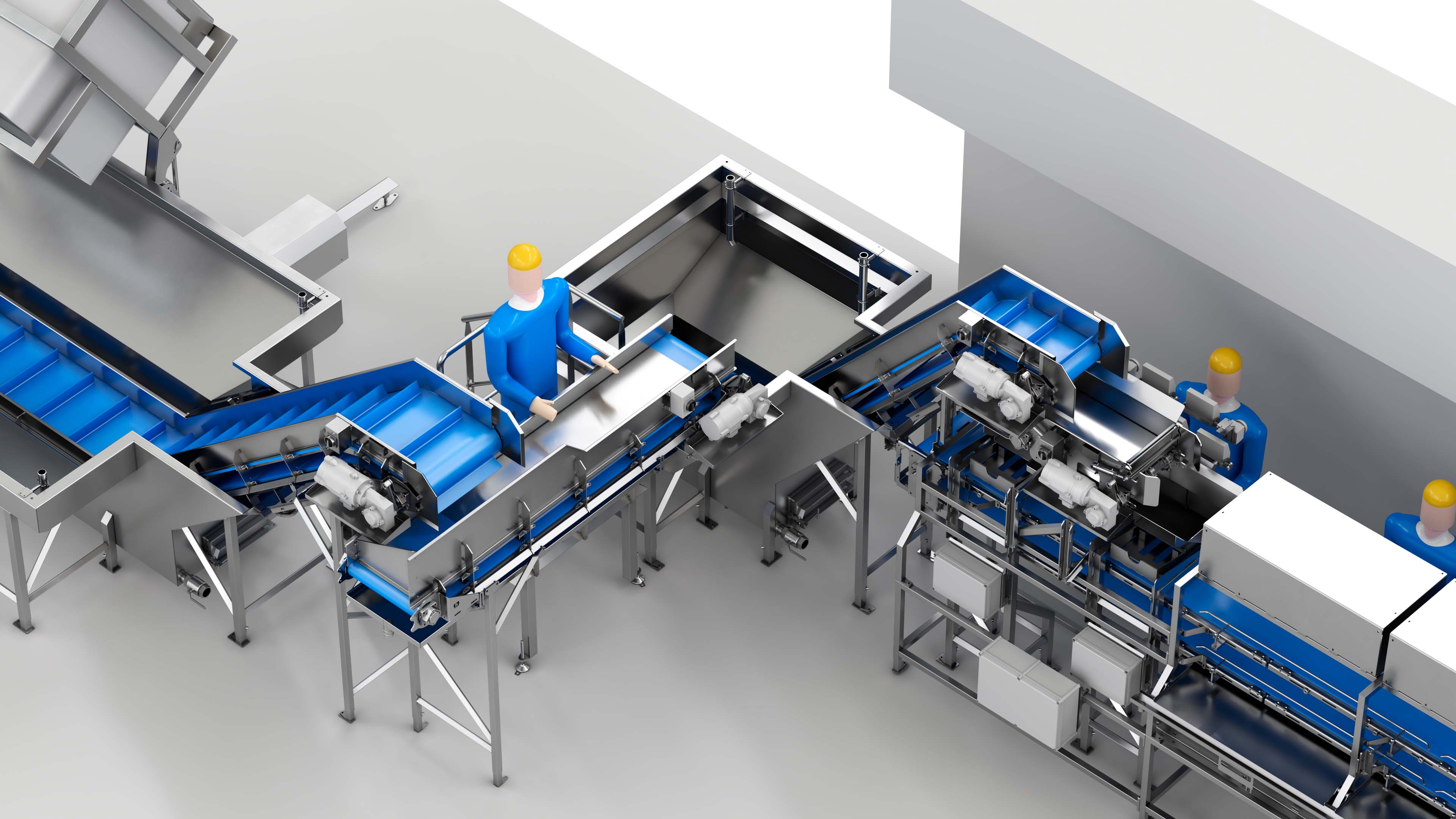

Carsoe Automated Packing and Freezing Line 2

Inspection of products before packing.

Carsoe Onboard North Star Automatic Horizontal Plate Freezer

How does an automatic plate freezer work?

An automatic plate freezer operates with a meticulously designed mechanism that features aluminium seawater-resistant plates and a stainless steel construction. These plates, maintained at a uniformly low temperature, ensure quick and even freezing when food products are placed between them.

Direct dual contact with the cold surfaces ensures a swift transition to a frozen state, preventing large ice crystal formation, and guarding against discoloration, enzymatic browning and cellular breakdown in seafood products.

Compared to traditional air blast freezing, which relies on cold air circulation to freeze products, plate freezing technology is notably more efficient, cutting down freezing time and conserving energy. This translates to significant cost-efficiency for businesses, primarily due to its reduced energy consumption. The automatic plate freezer enhances operational efficiency by reducing the need for hands-on intervention and ensuring consistent freezing parameters.

Learn more about Automatic Horizontal Plate Freezer here
