Vertical fish elevator

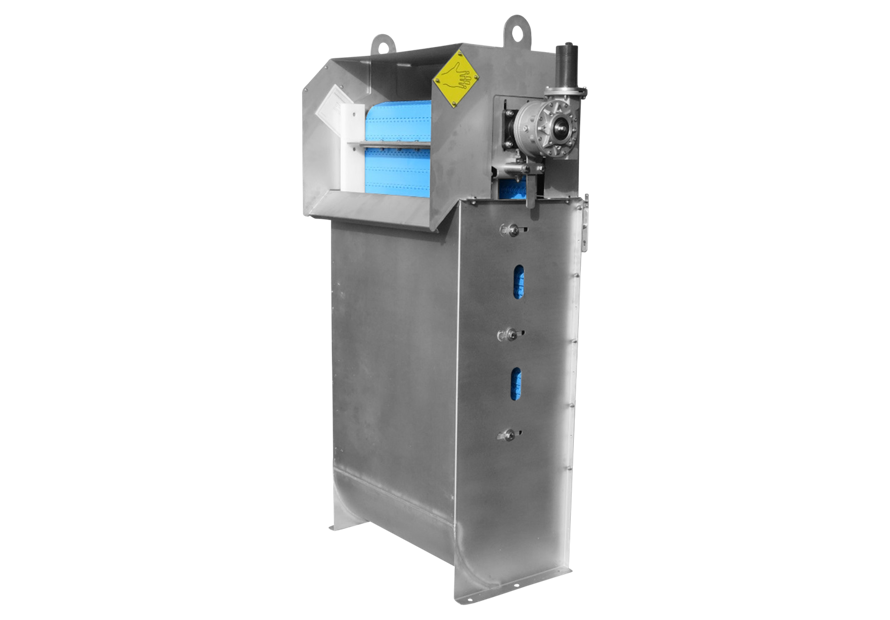

KM 130-110 Fish Elevator

KM 130-110 Fish Elevator lifts/transports the fish from deck or fish hold up to the gutting machine. There is adjustable elevating distance between belt and vertical slide plate. The machine is easy to service and maintain.

Also, KM 130-110 can be delivered with an incorporated fish washing section where the washing water is mixed with air. The resulting turbulence gives a very efficient wash of the fish after the gutting machine.

Technical specifications

Capacity	40-60 fishes/minute Depending on the type of gutting machine
Power	Electricity: 1 kW or Hydraulic: 10 l/minute at 70 bar or 2.64 gal/minute at 1,015 PSI
Water	1 only 1” connection Max 10 m3 at 3.5 bar or 2,641 gallon at 50 psi Normally 5-7 m3, 1,320–1.850 gallon
Weight	150 kg or 330 lb
Materials	Manufactured in polished stainless steel and F.D.A. approved materials

Niels Kronborg Nielsen

Senior Sales Manager

nkn@carsoe.com +45 40 89 46 35

Rasmus Luca Kronborg

Product Sales Manager

rkn@carsoe.com +45 40 48 04 23

Want to know more?

Let us contact you

Interested in learning more about our seafood equipment?

Fill out the form, and we will get back to you shortly.

First name * The 'First name' field is required

Last name * The 'Last name' field is required

Email address * Please enter a valid Email address

Telephone

Message

Explore other seafood processing equipment

Fish Gutting Machine

KM Mark 7

KM Mark 7 is a fish gutting machine with high capacity and improved gutting power that ensures better cleaning of fish.

Learn more

For gentle grading of fish

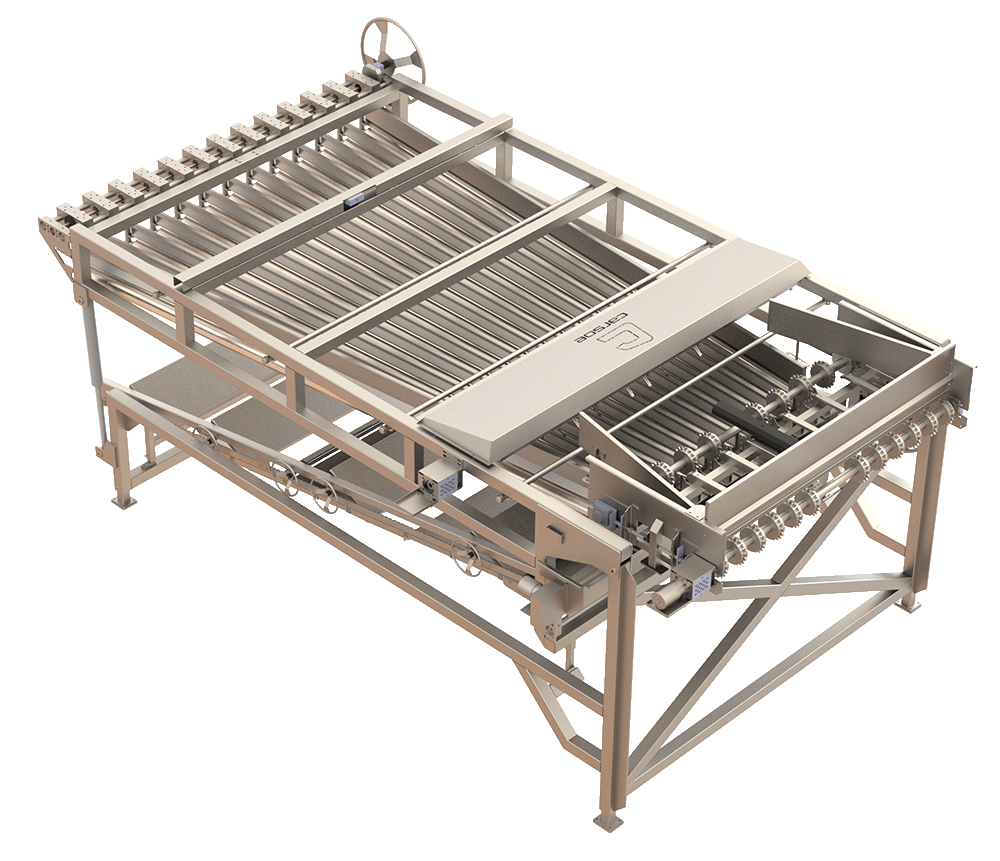

Fish roller grader
