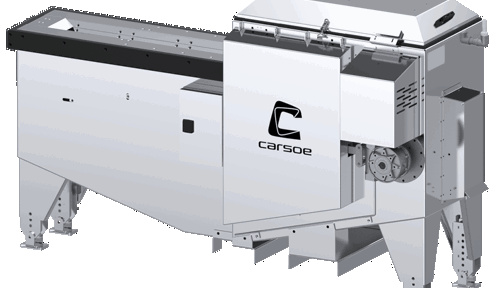

Maintenance of KM Mark 5 and 7

Regular maintenance is crucial for your onboard processing operations. Learn more about service of you KM Gutting Machines, watch videos and order spare parts kits. Learn more

What types of fish is the KM Mark 5 Fish Gutting Machine designed for?

The KM Mark 5 Fish Gutting Machine is designed for gutting various fish species such as cod, saithe, haddock, whiting, hake, red cod, blue cod, southern hake, merluza, southern blue whiting, alaska pollock, hoki, and similar species.

Where can the KM Mark 5 Fish Gutting Machine be used?

This gutting machine is versatile and can be used both onboard trawlers and in land-based factories for efficient fish gutting.

What is the processing capacity of the KM Mark 5 Fish Gutting Machine?

The machine has a processing capacity of 40 fish per minute, making it highly efficient for large-scale fish processing.

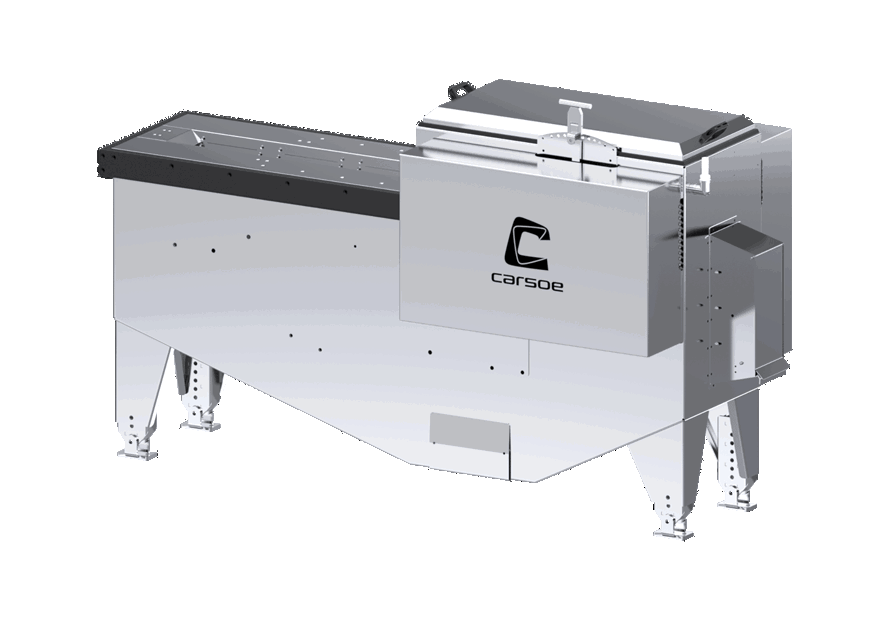

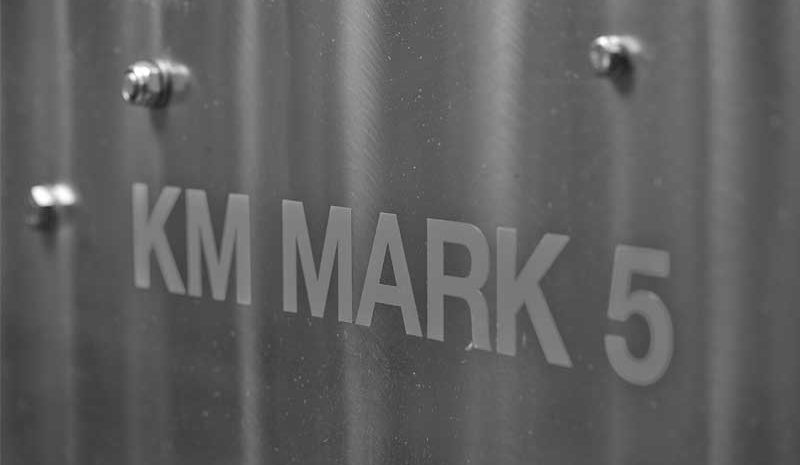

KM Mark 5 - Fish Gutting Machine

This gutting machine is designed for gutting fish such as cod, saithe, haddock, whiting and hake onboard trawlers as well as in land-based factories.

KM Mark 5 is a machine from the fish gutting product portfolio that consists of several variants.

The fish are placed continuously in the feeding chamber, where a conveyor belt with catches transports the fish through a positional system of guiding plates to the gutting chamber.

Fish gutting equipment

The rotating knife cuts the fish as required. After having been cut, the fish pass a rotating nylon brush and water sprays which remove the last entrails. The gutted fish are led to the outlet end for further transportation.

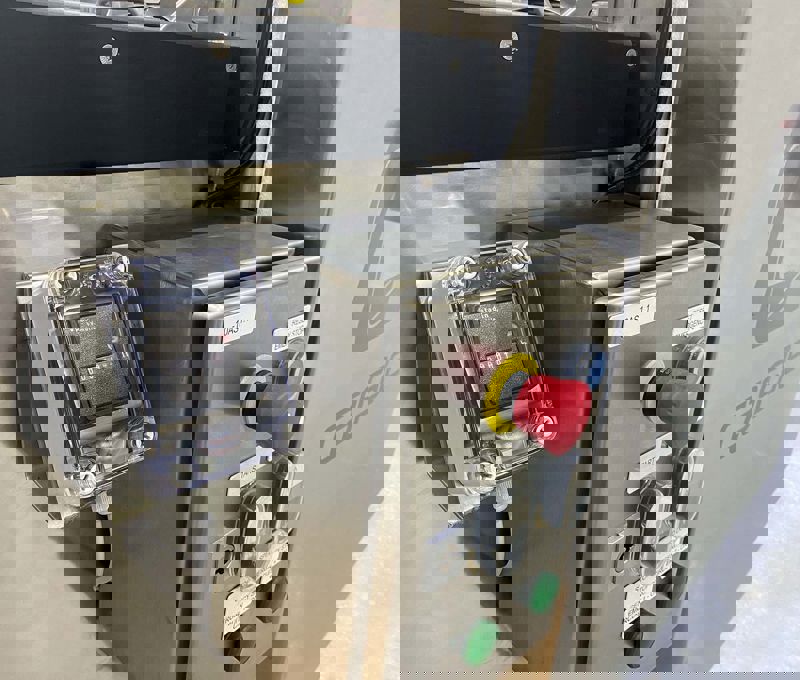

Integrated Hour Counter

We are pleased to introduce a new feature on all KM Mark 5 and 7 Gutting Machines: an hour counter, now included at no additional cost.

This addition simplifies tracking your production time and helps ensure timely service and maintenance, which are crucial for the machine's longevity and performance.

This makes it easy to track your production time and service your machine. The hour counter will assist in scheduling both minor and major services, ensuring your machine operates at its best.

This feature can also be retrofitted to your existing KM Mark 5 and 7 Gutting Machines.

Learn more about our Integrated Hour Counter here

Video Guides: Easy Maintenance of Your Gutting Machine

We know that uptime is critical and that you are sometimes far away from the nearest port and on your own when it comes to the service and maintenance of your processing equipment.

To make it easier for you to perform service and troubleshooting on your KM Mark 5 and 7, you can find several video guides with a step-by-step walkthrough on how to service your machine.

Browse the video guides here

Technical specifications

Capacity

40 fish/minute
Size of fish

30-75 cm
Species

Cod, red cod, saithe, blue cod, hake, southern hake, haddock, merluza, whiting, southern blue whiting, alaska pollock, hoki, and similar species
Electric connection

3 x 400 volt 50 Hz
Operation

Electric: 3 kW
or
Hydraulic: 30 l/min. at 100 bar = 7.9 gallon at 1600 psi
Water

3-4 m3 at 3.5 bar
or
1056 gallon at 50 psi
Weight

370 kg or 815 lb
Materials

Manufactured in polished stainless steel and F.D.A. approved materials
Other

Handle for moving preset gutting length forward and back in the fish.
New improved Turbo-jet brush system.
Central lubrication system.
Adjustable legs.
CE safety marked for minimizing labor insurance responsibility.
