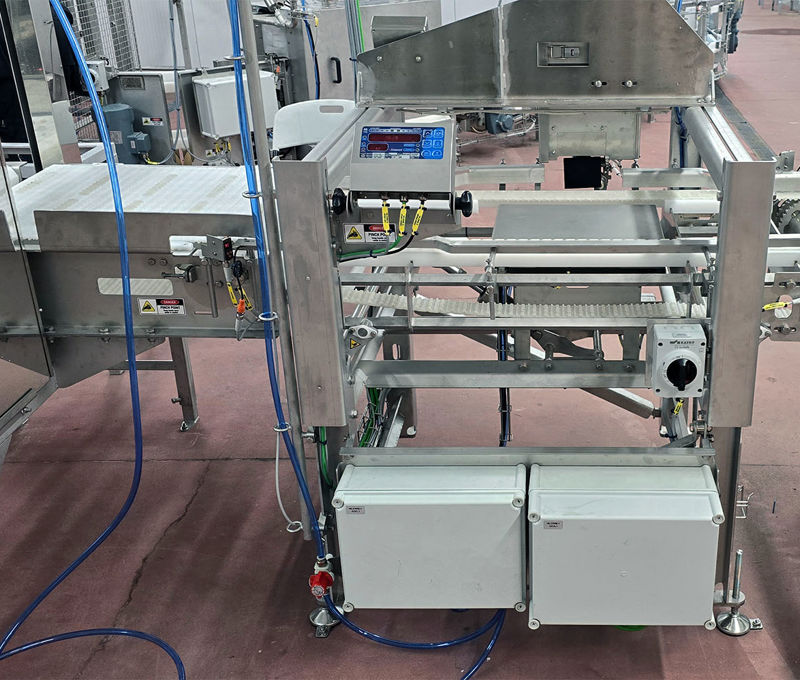

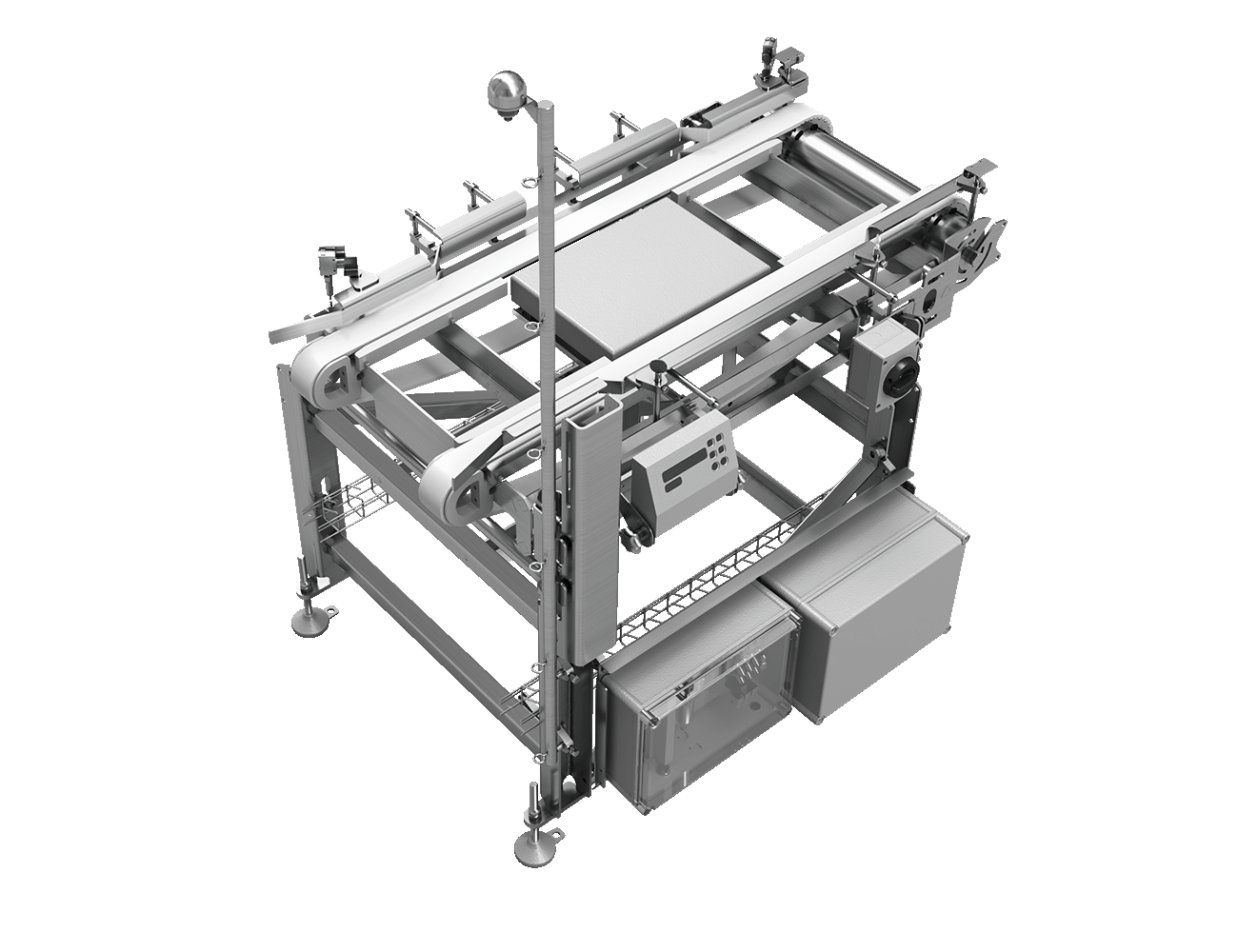

Check Weigher CS3047

The Check Weigher CS3047 is a conveyor with an integrated scale designed to ensure accurate weight control and optimization of production processes. The machine is equipped with advanced mechanical and electrical components to meet the highest demands in production automation.

Main Features:

Conveyor with scale: The integrated scale conveyor ensures precise measurement of product weight, ideal for quality control
Applicators: The machine can be equipped with applicators for applying labels either from the top or the sides – a feature that can be adapted as needed
Label scanner (add-on): An efficient scanner reads the labels, enabling traceability and data recording of each product

The check weigher is an integrated part of the production line and should be connected to the line control system to ensure a coherent and efficient operation.

Efficient and Precise Weight Control

The checkweigher operates automatically and efficiently to ensure each product meets weight requirements. Its key functions are:

Product feeding and positioning: When a product is transported onto the scale, a signal is activated to prevent further product feeding. The product is precisely placed on the weighing platform via an optical distance reader.
Weighing: The weighing is performed automatically, and a signal is sent to the control system when the weighing is complete.
Return to starting position: After weighing, the conveyor returns the product to the starting position, ready for further processing.
Timeout and error indicator: If the process is not completed correctly, a warning light is activated, and the operator is notified that action is required.

Advantages of automated Check Weighing

Fast and accurate weighing

The checkweigher is designed to handle up to eight boxes per minute without a connected printer and six boxes per minute with a connected printer.
Ready for future additions

The flexible construction is designed with future needs in mind and allows for additional functionality and integration of new technologies as needed.
Automated data collection

The entire system integrates easily with our software platform Insights, providing you with a clear overview and the ability for effective reporting of weighed items.
