Single Column Lift HKV 800

Carsoe’s single column lifts provide the user with a great variety of applications for lifting and emptying bins.



If you wish to empty bins or vats with a total weight of up to 800 kg, Carsoe can offer you the sturdy single column lift HKV 800. The lift’s fork devices are tailored to your needs.



All loaders are completely made of stainless steel with a glass-blasted surface, ensuring easy cleaning.
As a standard all our lifts are equipped with a solid nickel-plated chain.

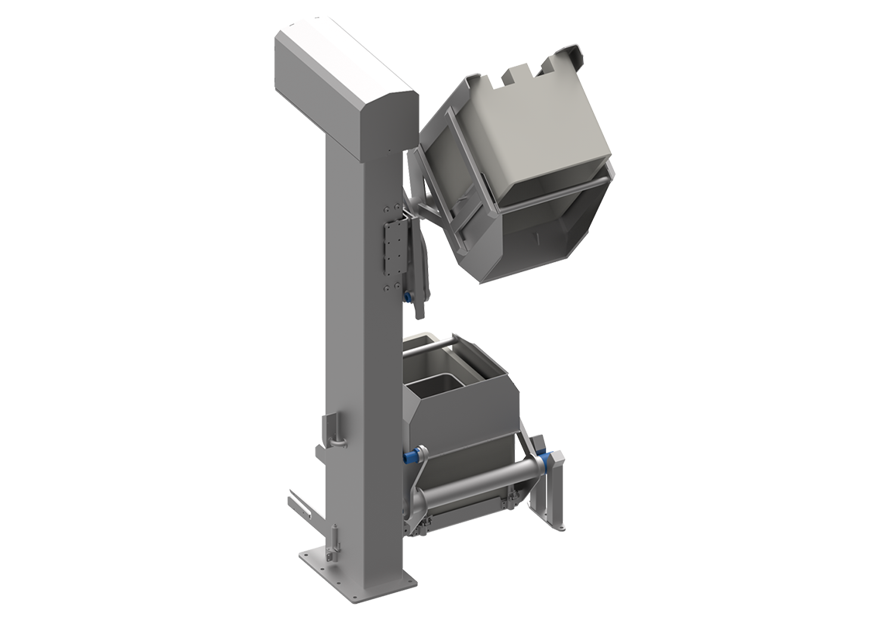

Carsoe Single Column Lift HKV 800

Column lift for 800 kg containers



The HKV800 column lift is designed for containers with a maximum capacity up to 800 kg.
The tipping height can be adjusted +/- 120 mm with either straight or sidewards tipping.



Further design features:



  • 1 1/2" nickel-plated chain
  • Mechanical anti-fall security system
  • Stainless steel construction

Hygiene and safety


Hygienic design



The hygienic design of Carsoe’s single column lift is characterized by its closed column construction which protects the chain against dirt. The front cover can easily be removed which makes regular maintenance easy and convenient, and at the same time secures a longer lifetime of the machine.


Safety measures



The user’s safety is our biggest priority. Therefore, all our lifts are equipped with an anti-fall security system, guaranteeing that the fork gets locked in the column in case the chain is breaking. Additional precautions have been added by limiting the lifting speed to maximum 5 meters/min. In order to return the bin to the floor the user is required to activate the corresponding function button.

Column lift design

Let us guide you in designing the best column lift solution for your production.


The lift can be fitted with features to optimized your production flow or to increase safety for your workers.





  • Chute mounted on forks

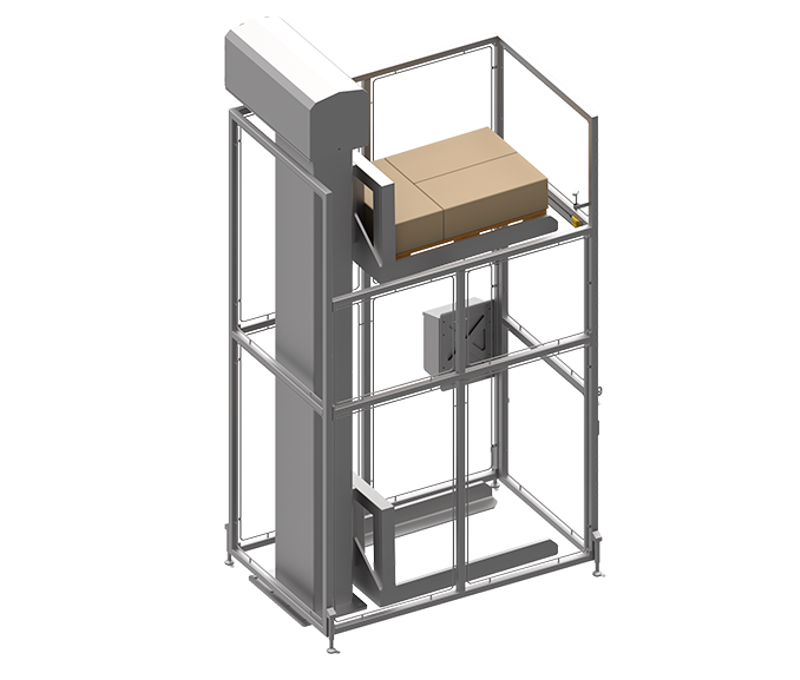

  • Safety shielding
  • Elevation of pallets
  • Various anticorrosion chain types



Carsoe Single Column Lift HKV 800
