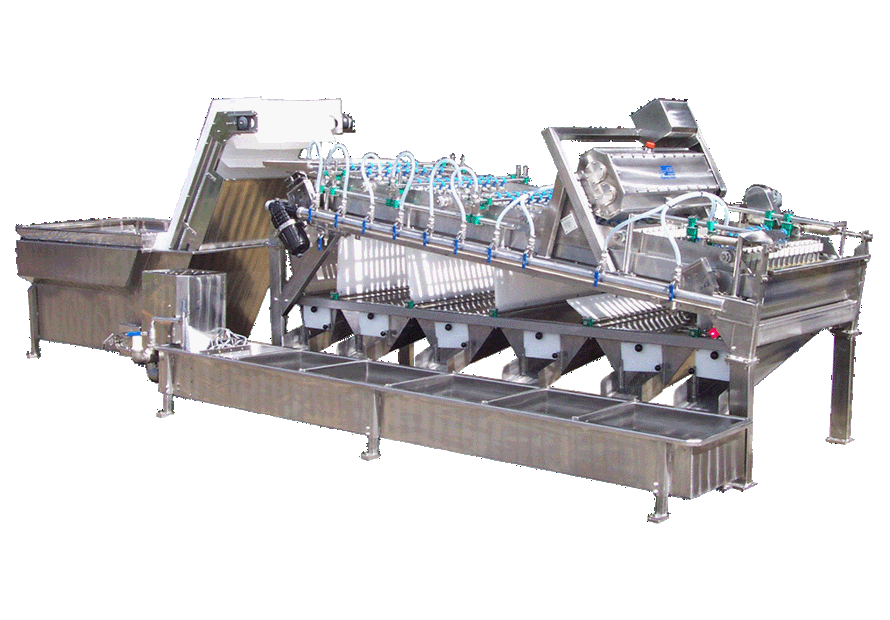

KM 1130 Shrimp Grading Machine

KM 1130 Shrimp Grading Machine has been specially designed for warm water shell on head on/off shrimp. It is highly useful for land-based factories.

KM 1130 grades the shrimp by means of a vibrator mounted on the bed frame. The directional amplitude of the vibrator secures a gentle handling and an optimal sorting. The vibrator comes in two models; Standard or low noise.

Effective grading

Shrimp grading process

KM 1130 is equipped with new effective roller scraper system. As standard, the machine is delivered with a quick adjusting system on grading pipes, as well as between the outlets under the grader.

Also, KM 1130 can be delivered with dividers or with base box system depending on requirements.

It is recommended that KM 1130 is delivered with a KM Infeeder for optimal capacity and sorting accuracy.

Technical specifications

Capacity From 400-1500 kg/hour, depending on feeding system, number of sizes, shrimp sizes and quality
Grades Up to 6 different grades
Power Electricity: 1,0 kW
Hydraulic: 20 l/minute at 70 bar
Water 1 pcs. 2" connection
Consume Max. 30 m3 at 3.5 bar
Normal 20-25 m3 at 3.5 bar
With water re-cycling system: 20% of above
Weight 800 kg excl. infeeder
Materials Manufactured in polished stainless steel and F.D.A. approved materials

Conveyors from outlet
Water re-cycling system
