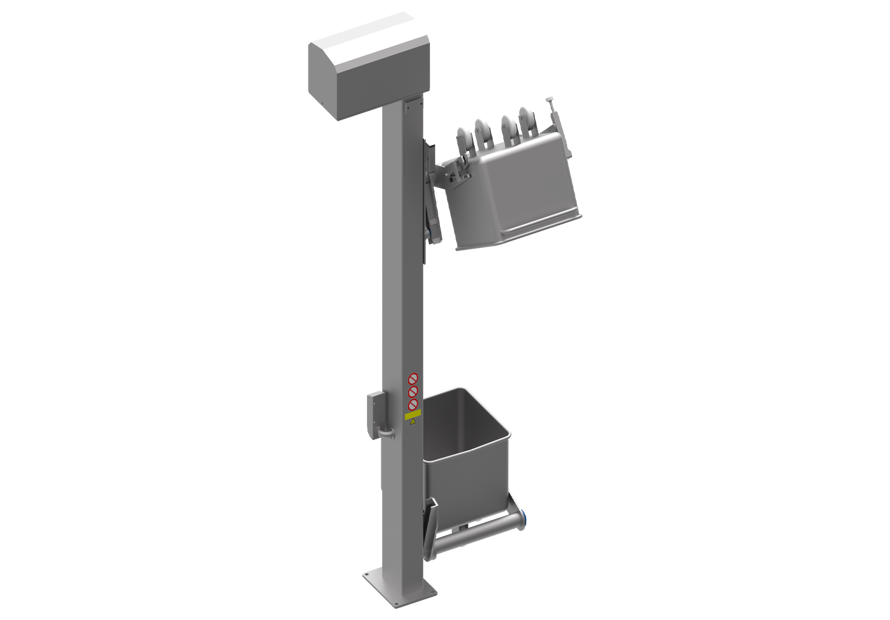

Single Column Lift HKV 200

Emptying of bins


The HKV 200 is a basic lift model designed for 200- and 300-liter bins. This standard column lift can be fitted with a wide selection of options.

Carsoe offers the HKV 200 single column lift for emptying of 200 liter bins with a maximum capacity of 350 kg.

Our lift can easily be customized to your production or requirements. The configuration of your solution is done in close collaboration with our product specialists.

Hygiene and safety



Hygienic design

The hygienic design of Carsoe’s single column lift is characterized by its closed column construction which protects the chain against dirt. The front cover can easily be removed which makes regular maintenance easy and convenient, and at the same time secures a longer lifetime of the machine.

Safety measures

The user’s safety is our biggest priority. Therefore, all our lifts are equipped with an anti-fall security system, guaranteeing that the fork gets locked in the column in case the chain is breaking. Additional precautions have been added by limiting the lifting speed to maximum 5 meters/min. In order to return the bin to the floor the user is required to activate the corresponding function button.

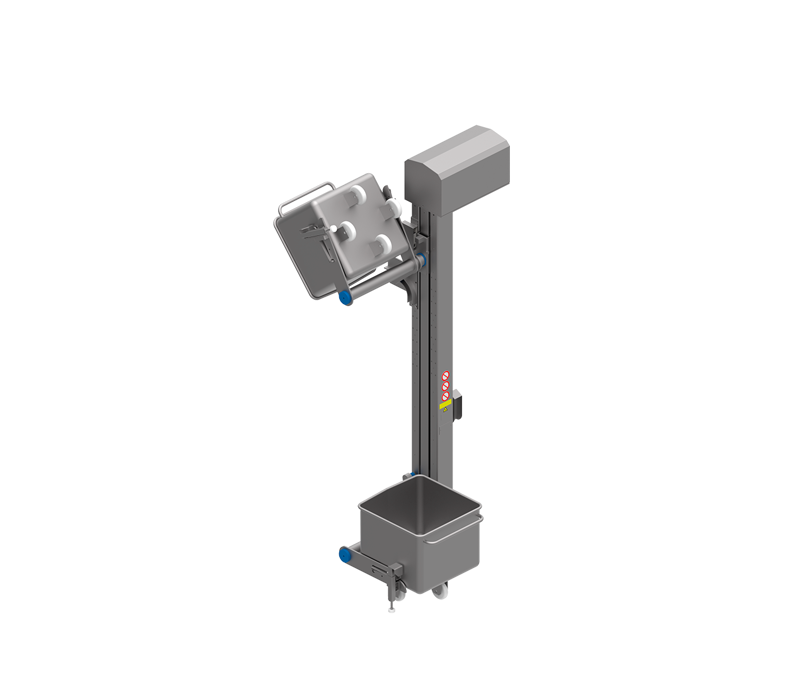

Single column lift - HKV200

The HKV200 is designed for 200 l Euro bins with a maximum capacity of 350 kg.

It allows for straight or sideways tipping. The tipping direction can easily be adjusted also after installation.

The standard tipping angle is 120°. The tipping height can be individually adjusted by 5 steps of 100 mm.


Further specifications:

  • 1" nickel-plated chain
  • Spring activated bin lock
  • Mechanical anti-fall security system
  • Stainless steel construction

Designed to fit

Customized lifting solution

The various options for your HKV 200 lift can be combined and adjusted according to your requirements.

  • Chute mounted on forks
  • Increased tipping angle
  • Shaft extension
  • Various anticorrosion chain types
  • Weighing function

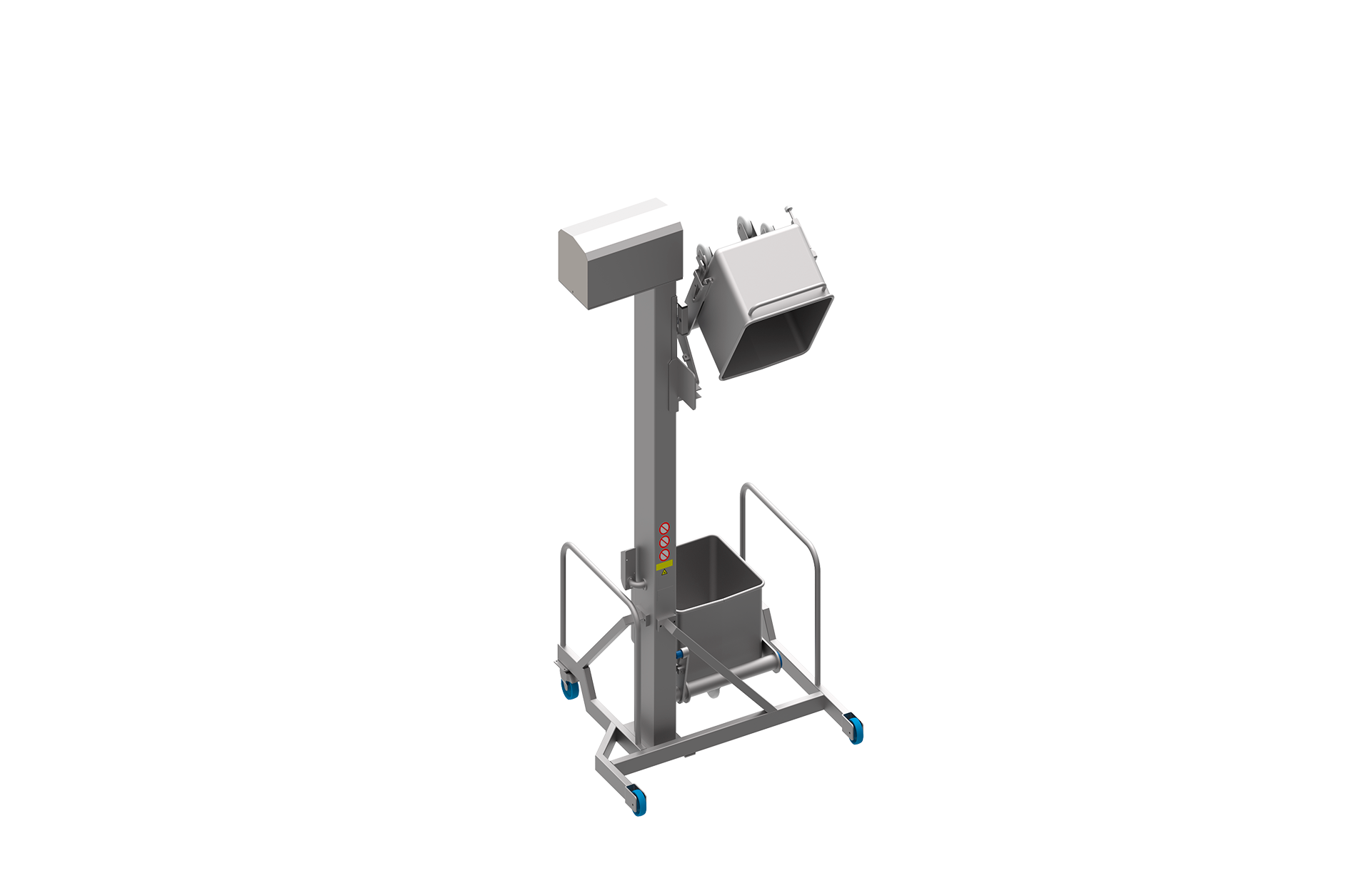

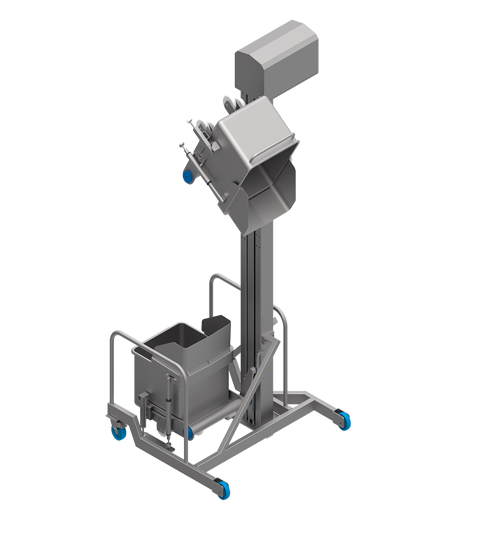

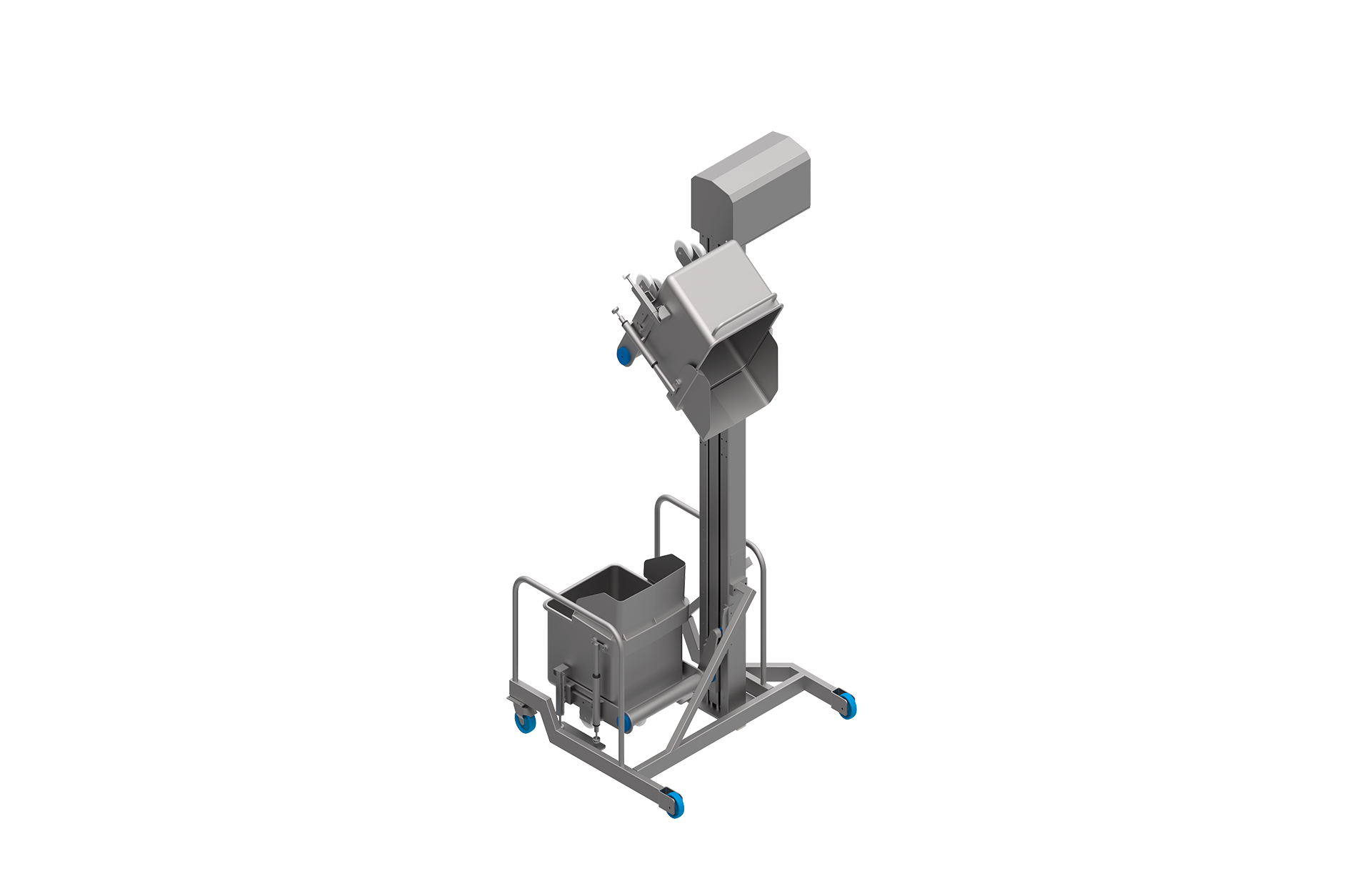

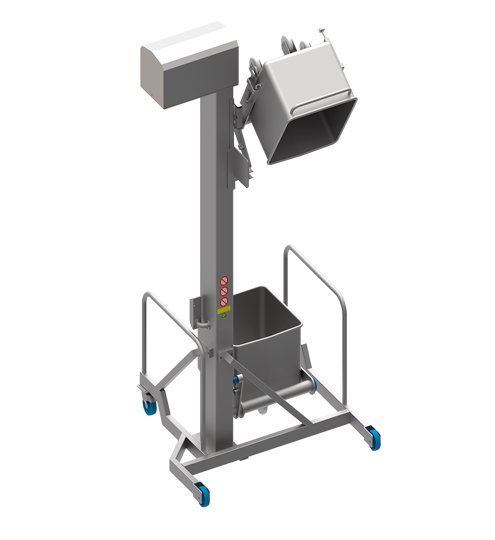

  • Mobile frame up to 2700 mm discharge height
  • Mobile frame with fixed chute for tumbler loading
  • Side removable motor cover

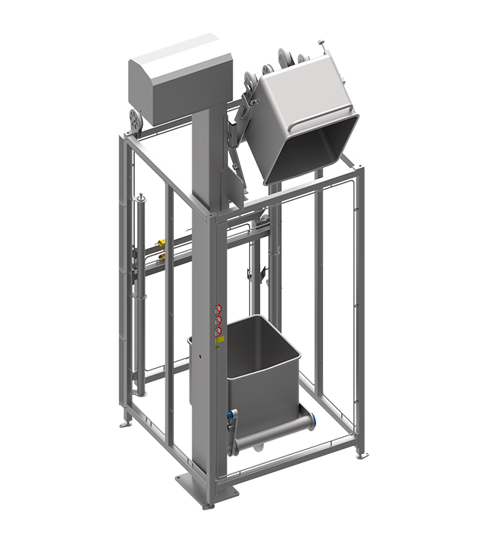

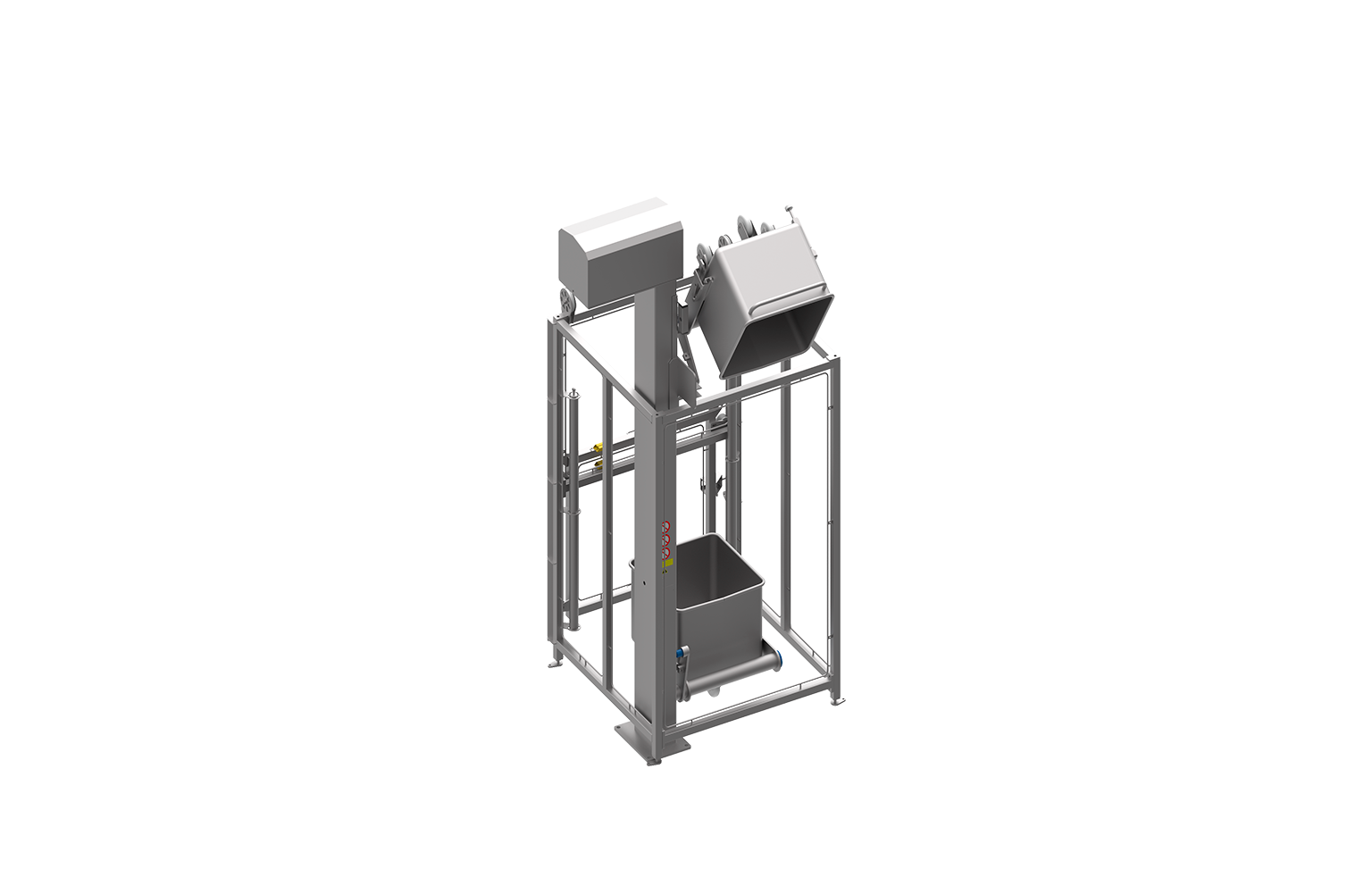

  • Safety shielding
  • Fork devices for 120 l bins, barrels etc.
  • Tilting arrangement allowing discharging into machines with lid

Contact me

Column lift questions?

The configuration of your solution is done in close collaboration with our product specialists. They have designed countless lifting solutions and can help you configure the best lift for your production

Let us work together to find the optimal solution for your lifting and handling needs.


206 Vanessa Fredberg Carsoe

Vanessa Fredberg

Area Sales Manager - Lifting & Handling

+45 22 40 28 11


What is the Single Column Lift HKV 200 designed for?

The HKV 200 is designed to empty 200 and 300-liter bins, suitable for industries requiring the handling of bins, trolleys, eurobins or other such containers. It's a standard model that can be customized with various options to meet specific needs.

What are the key features of the HKV 200?

This lift offers hygienic design with a closed column construction to protect against dirt, an anti-fall security system for user safety, and can be fitted with numerous options for customization such as chute mounting, increased tipping angle, and mobile frames.

Can the HKV 200 be customized?

Yes, the HKV 200 can be tailored to specific requirements with options like chute mounted on forks, shaft extension, various chain types, weighing functions, customized bins/trolleys and more, ensuring a perfect fit for your production needs.
