CS4003 Onboard Cargo Elevators

Efficient cargo handling is critical for modern vessel operations, and the CS4003 cargo elevator is designed to meet the demanding needs of industrial processing plants and onboard systems.



This advanced solution ensures seamless integration into your production processes if you're looking to improve space utilization, reduce manpower, or accelerate workflows.

Cargo elevator for Onboard Handling

Cargo elevators and other onboard lift options

Our elevators are designed specifically for use on vessels to facilitate the transportation of goods, products, and cargo between decks. The cargo elevator is an important part of your onboard factory design. In addition, we offer other types of onboard elevators to suit your needs, including:



  • Offloading elevators: These elevators automate the offloading of goods from the cargo hold to the dockside, streamlining the process and reducing dependency on external equipment.

    Learn more about offloading elevators here



  • Packaging elevators: These elevators are designed to transport packaged goods between different production areas, ensuring seamless workflow and optimizing space.

    Learn more about packaging elevators here

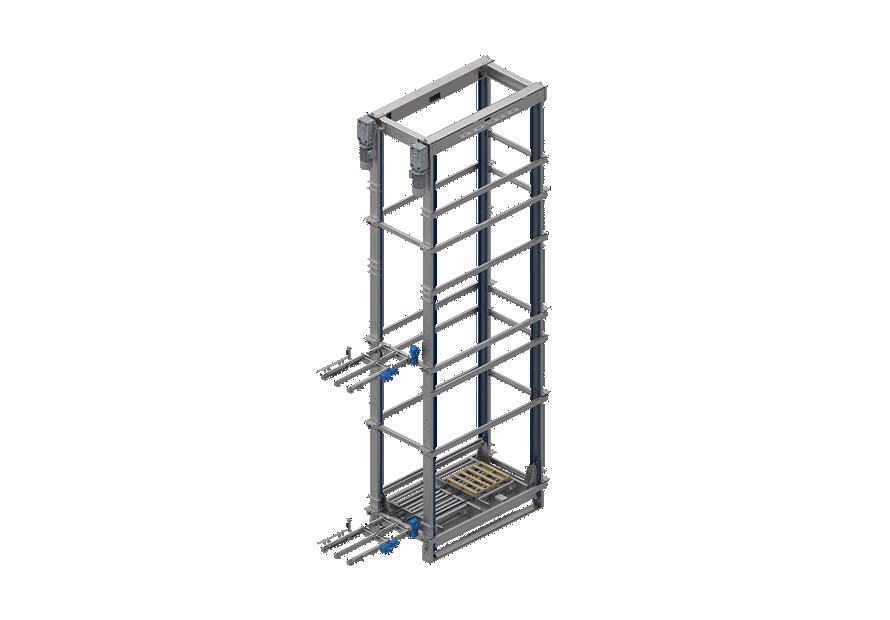

Carsoe Cargo Elevator CS4003

How cargo elevators improve onboard and offloading efficiency

  • Reduced Manual Labor

     A cargo lift elevator is a system designed to transport the finished heavy products from the production deck to the cargo and tween deck. Cargo lifts provide automated and efficient transport that save both time and resources.  By integrating a cargo lift or plant elevator into your system, you reduce manual labor needs to as few as two workers.

  • Efficient transportation

    Our elevators streamline the transport of products between decks, ensuring fast and efficient movement while automating pallet loading from factory to cargo. By integrating elevators into your palletizing line, you can save time, reduce manpower costs, and optimize production space for a more efficient workflow.

  • Easy Offloading of Goods

    At port, the offloading cargo elevator automates the transportation of goods from the cargo hold to the quayside. This means that products can be moved directly onto trucks at the quayside, enabling quicker turnaround and reducing dependency on external equipment.

  • Reliable handling of heavy loads

    Additionally, the elevator is equipped to handle heavy lift cargo, such as pallets and equipment, with a working load limit of up to 4,000 kg. Its robust design also ensures reliable performance under challenging conditions, including extreme temperatures and high workloads

Cost, Installation and Maintenance of an Cargo Elevator

Product specifications of CS4003 cargo elevator

The CS4003 Cargo Lift Elevator is engineered for durability, efficiency, and customization. Key specifications include:



  • Construction material: Stainless Steel EN 1.4301 (AISI 304).
  • Working load limit (WLL): 4,000 kg.
  • Power consumption: 15 kW.
  • Voltage: 440VAC-50/60Hz.
  • IP rating: 54.
  • Lifting speed: 12 m/min (0.2 m/s).
  • Minimum operating temperature: <0°C.
  • Eigen weight: Approx. 3,400 kg (varies with height and platform dimensions).
  • Maximum height: 6 meters.
  • Platform dimensions: Dependent on pallet size, but fits two regular pallets end-to-ent, e.g., two EU pallets (1200x800 mm) or HG pallets (1050x1050 mm) etc.
  • Conveyor options: Single/double roller or chain conveyors.
Carsoe Cargo Elevator CS4003
Carsoe Onboard Service

Why choose Carsoe?

At Carsoe, we specialize in delivering tailored cargo elevator solutions that optimize automation, increase production capacity, and minimize manual handling.



Our process includes:



  1. Consultation: Collaborating with clients to define specifications and requirements for the optimal solution.
  2. Customized design: We design systems to fit your vessel and specific handling needs. This often includes conveyors for automated transportation and chain systems for efficient cargo movement.
  3. Manufacturing excellence: Built in Denmark, our elevators meet the highest quality standards.
  4. Seamless installation: Whether it’s a complete factory system or a standalone plant elevator, we ensure smooth integration.



By choosing Carsoe, you gain a reliable partner to support your cargo handling needs with cutting-edge solutions. Incorporating an elevator like the CS4003 into your operations means reduced manpower, faster processing, and enhanced space utilization.

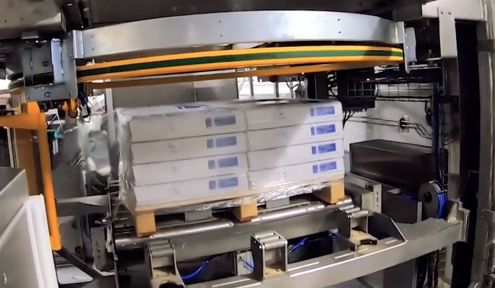

Palletizing and handling solutions for your factory

We design, build and install a variety of different palletizing solutions with our palletizer with integrated stretch wrapper as our flagship in onboard handling. Learn more about onboard palletizing, integrating sorting your catch in hotels as well as our onboard elevator solutions below.
