Swingloader HDL 300

The HDL 300 swingloader is designed for emptying euro bins with a maximum lifting capacity of 300 kg.



The machine allows the emptying process to be stalled, which enables the user to control the emptying process.



Due to its strong and sturdy construction the swingloader can handle a lot of wear and tear.



Thanks to its wheels, the HDL 300 is easy to place wherever needed in your production. Floor fittings for stationary use are an optionable function that can be added.

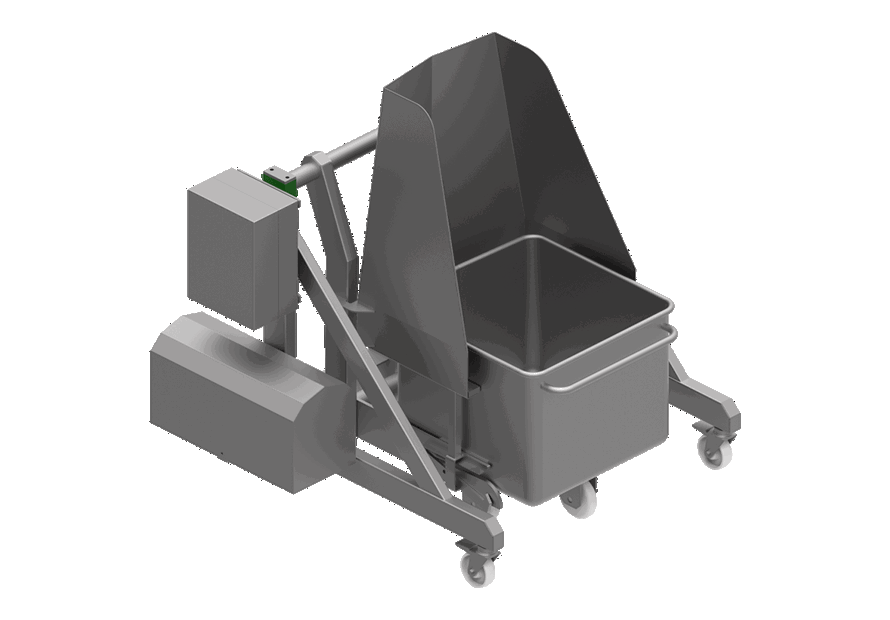

Carsoe Swingloader HDL 300

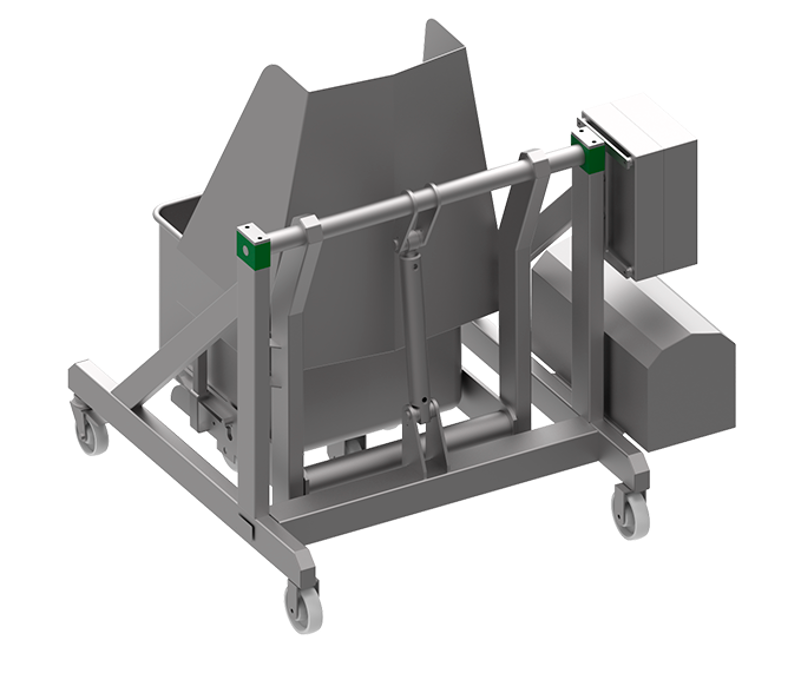

Carsoe Swingloader HDL 300

The HDL 300 swingloader is equipped with a stainless cylinder, a chute, as well as an integrated hydraulic station. The hydraulic station has an oil tank and valves.



All electrical and hydraulic connections are shielded.



The swingloader can be equipped with a discharge table.



The standard version of this swingloader is based on Euro-bin dimensions but can be customized upon request.

A strong swingloader





The HDL 300 swingloader is designed for 200 l Euro-bins with maximum capacity up to 300 kg.



  • Tipping angle: 120°
  • Tipping height from 1000, 1100 mm or 1200 mm
  • Stainless steel cylinder with integrated hose safety valve
  • PEHD plate integrate in the chute for minimizing product loss
  • Side mounted hydraulic pump station
  • Mounted on castors
  • Function keys integrated in stainless steel control box
  • Stainless steel construction

Customized solution





The standard version of this swingloader is based on Euro-bin dimensions but can be customized upon request.

You also have other options for a customized swingloader, such as:



  • Other discharge heights
  • Safety shielding
  • Stationary execution
  • Discharge table
