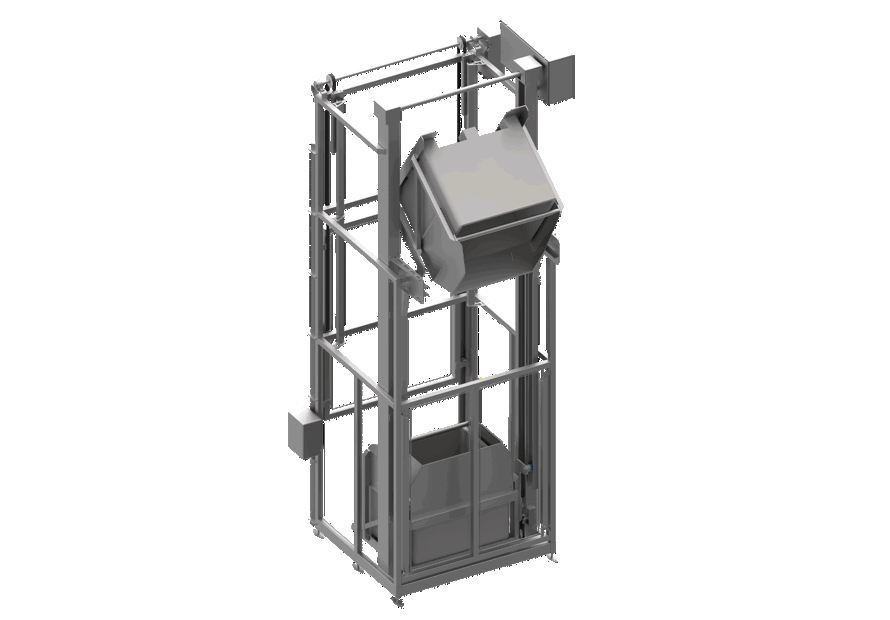

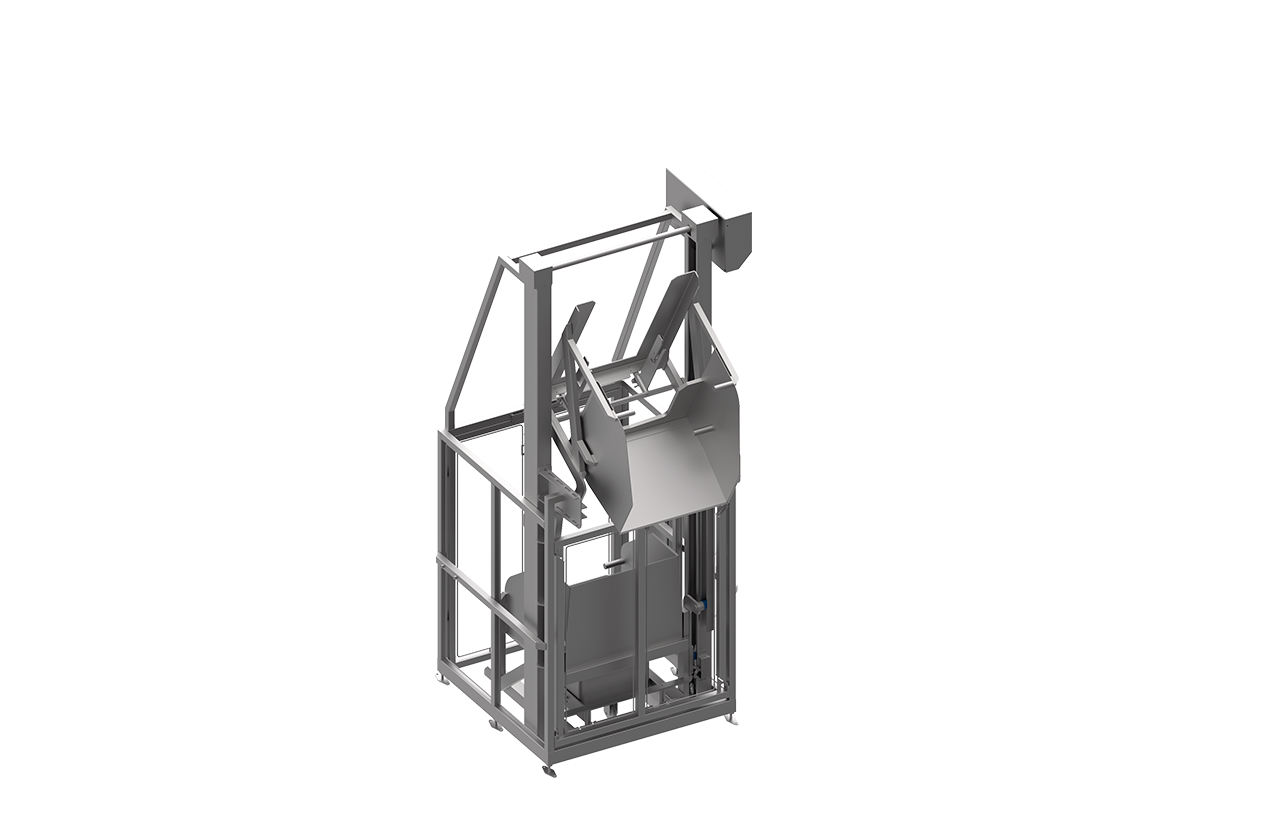

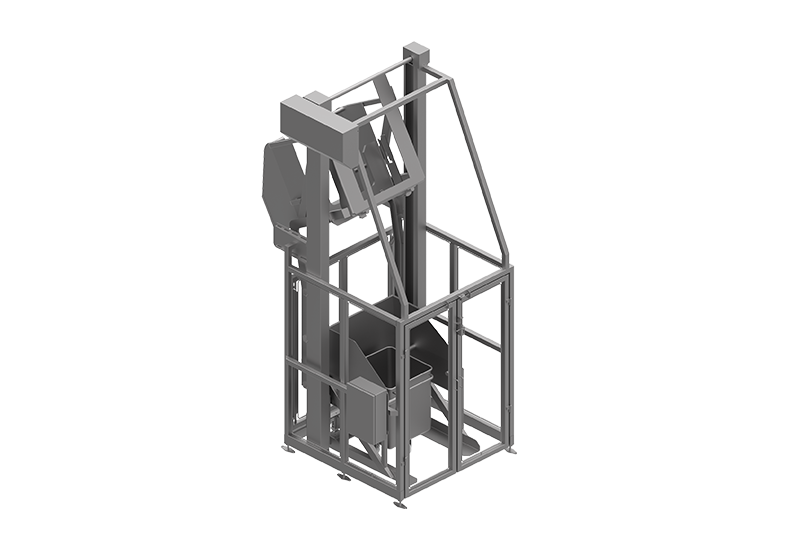

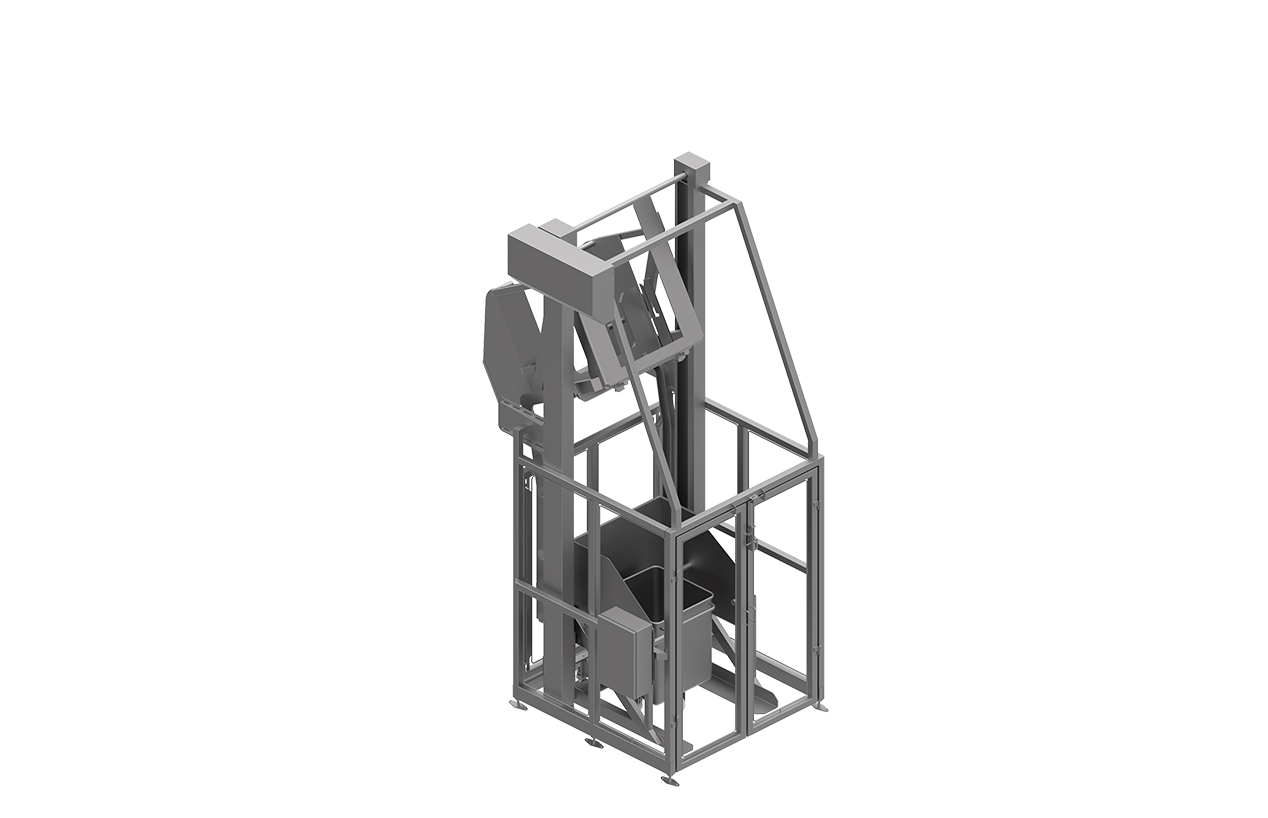

Double column lift DB HKV 1200

Heavy-duty loads or emptying containers at higher heights can be easily handled by our double column lift. The design of the DB HKV 1200 ensures minimal wear and tear despite heavy loads, giving you the benefit of low maintenance.

The lift has an anti-fall security system on both columns and solid chains.

Heavy duty device for unloading big boxes and containers

Technical data

Product information

  • Max. capacity up to 1200 kg
  • 5/4" nickel-plated chains
  • Customized lifting chair
  • Straight or sidewards tipping
  • Mechanical anti-fall security system
  • Electrical overload protection
  • Stainless steel construction

Extra options

  • Chute mounted on forks
  • Seperate tilting chute
  • Pneumatic chute
  • Safety shielding
  • Forks for 200 l bins
  • Mobile version

Hygiene and safety



Hygienic design

The hygienic design of Carsoe’s double column lift is characterized by its closed column construction which protects the chain against dirt. The front cover can easily be removed which makes regular maintenance easy and convenient, and at the same time secures a longer lifetime of the machine.

Safety measures

The user’s safety is our biggest priority. Therefore, all our lifts are equipped with an anti-fall security system, guaranteeing that the fork gets locked in the column in case the chain is breaking. Additional precautions have been added by limiting the lifting speed to maximum 5 meters/min. In order to return the bin to the floor the user is required to activate the corresponding function button.

Contact me

Column lift questions?

The configuration of your solution is done in close collaboration with our product specialists. They have designed countless lifting solutions and can help you configure the best lift for your production.

Let us work together to find the optimal solution for your lifting and handling needs.
